Calcium Silicate Board
Calcium Silicate Board

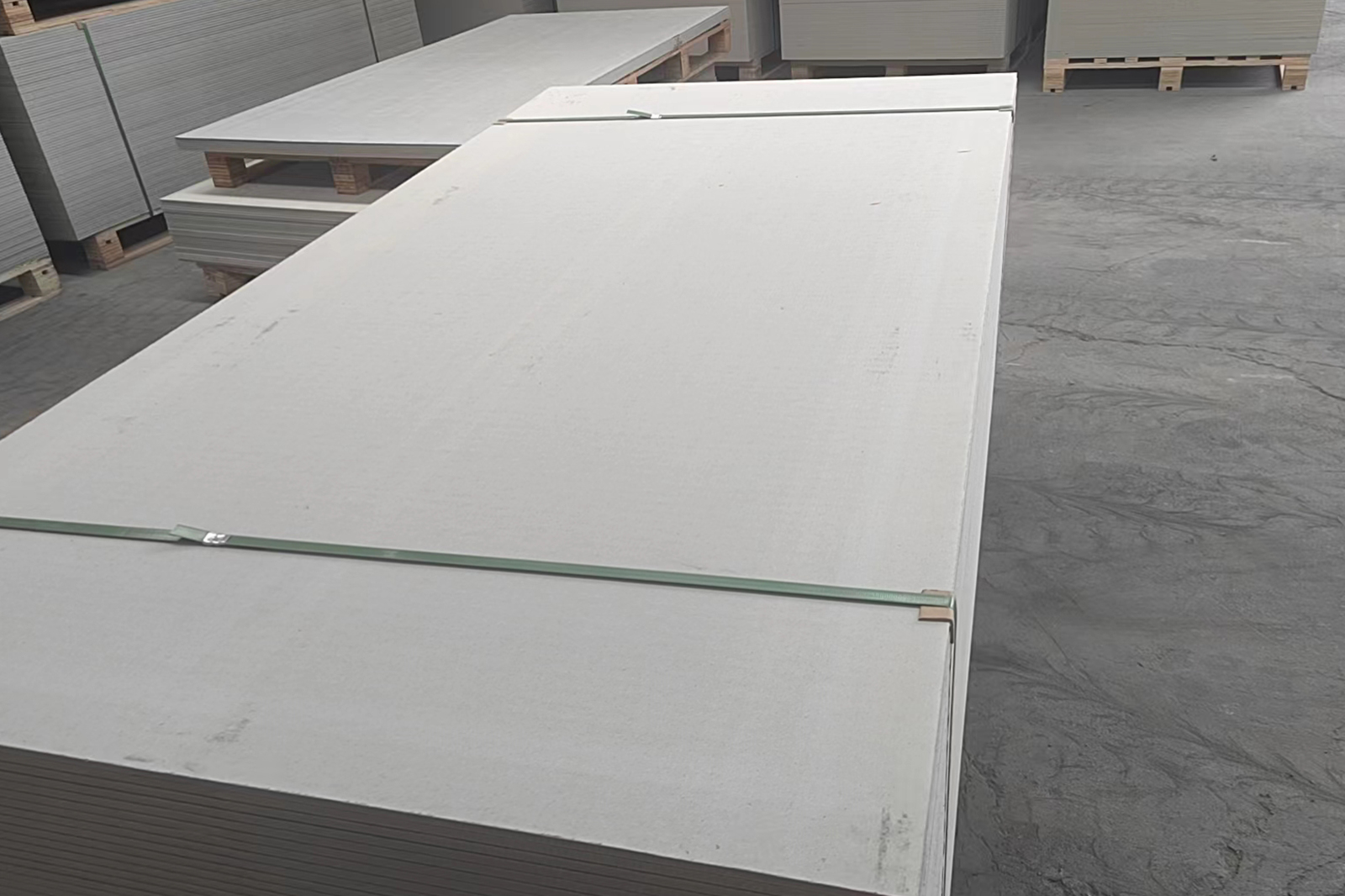

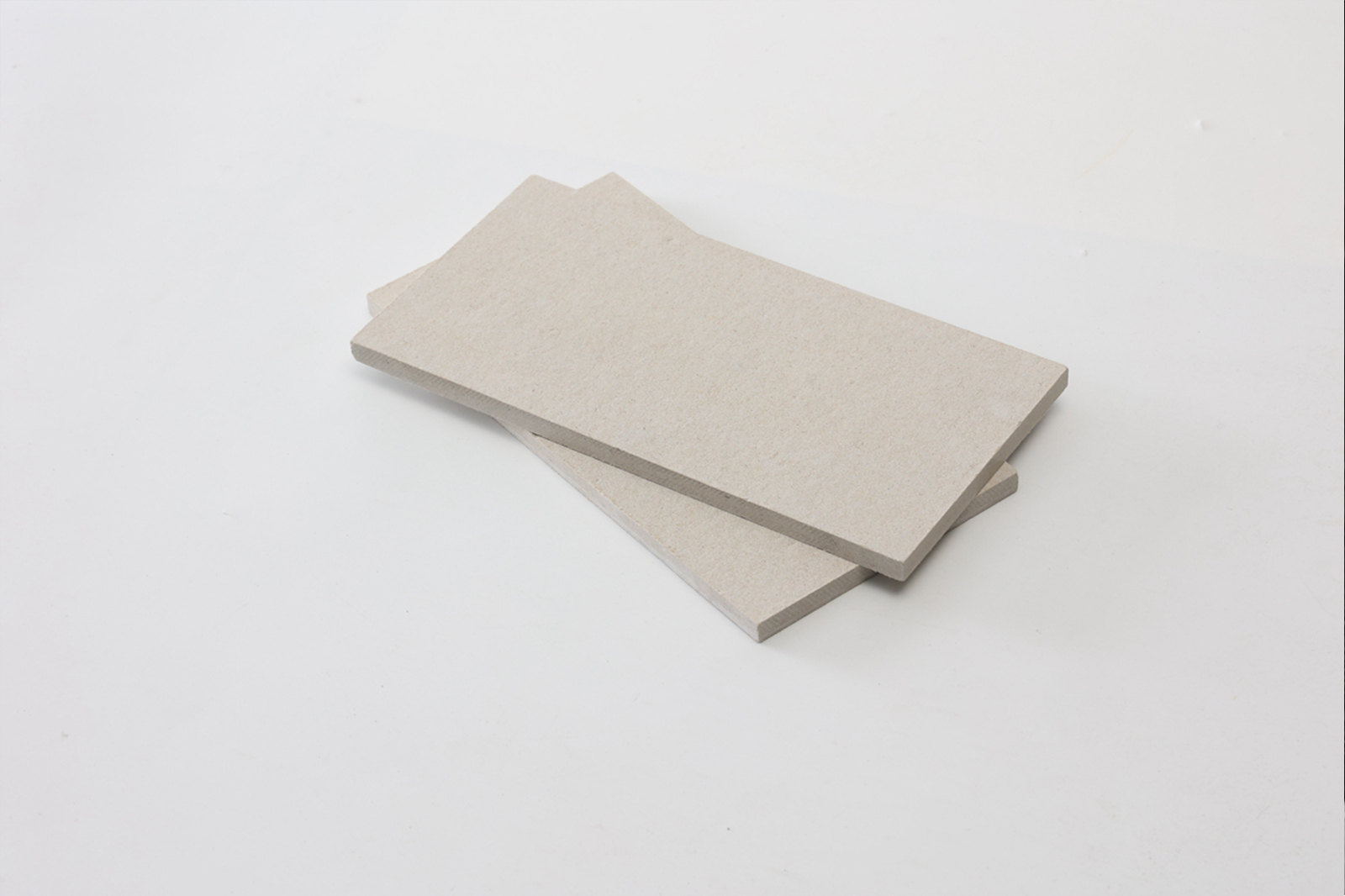

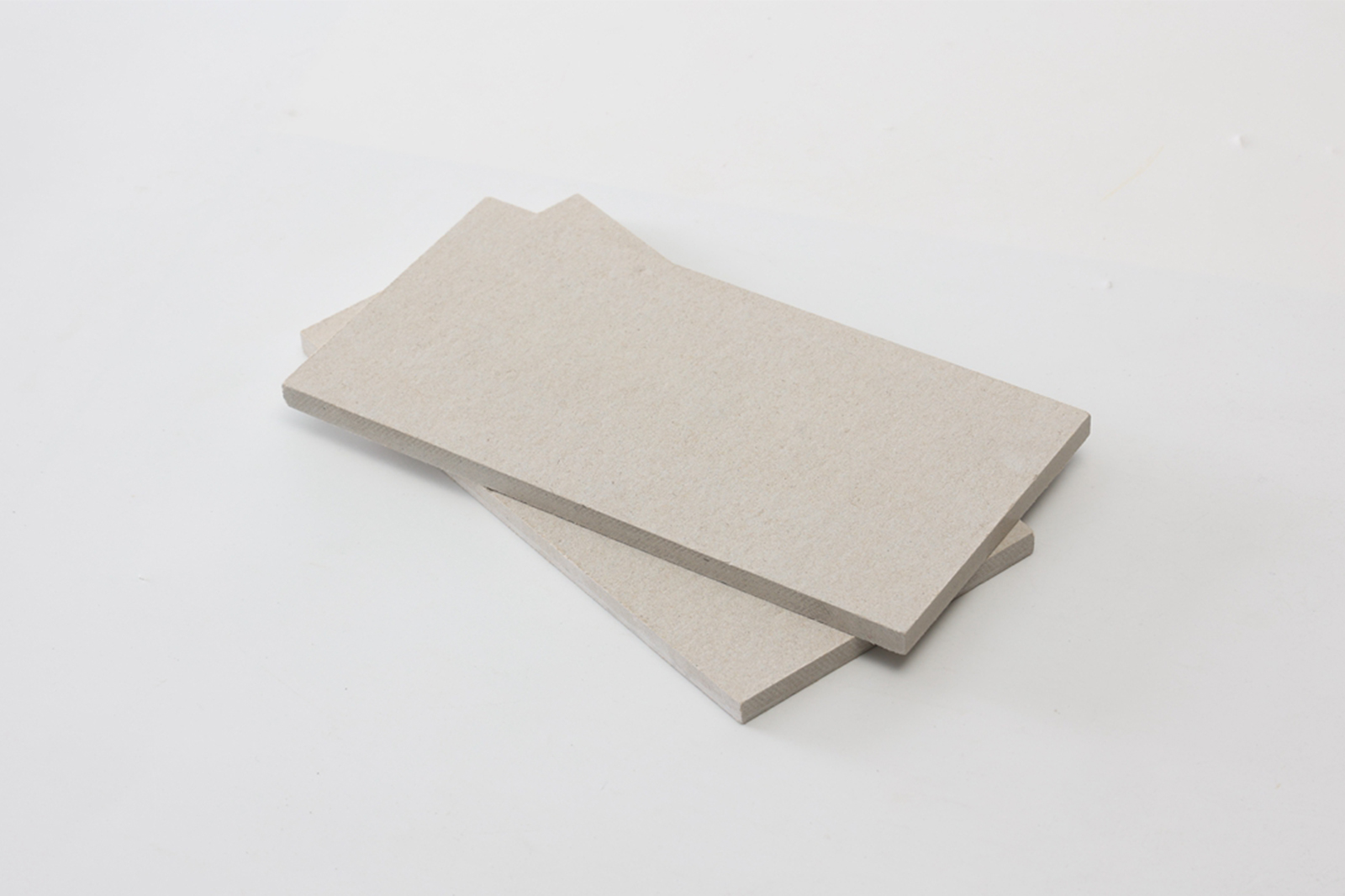

Our Calcium Silicate Board is a non-asbestos, energy-efficient, lightweight building board which is manufactured through high-temperature autoclave curing treatment, ensuring superior durability and performance.
Specification (mm): 2440*1220
Thickness (mm): 8/9/10/12/15
Density：three types—low, medium, and high—to meet diverse structural and application requirements.

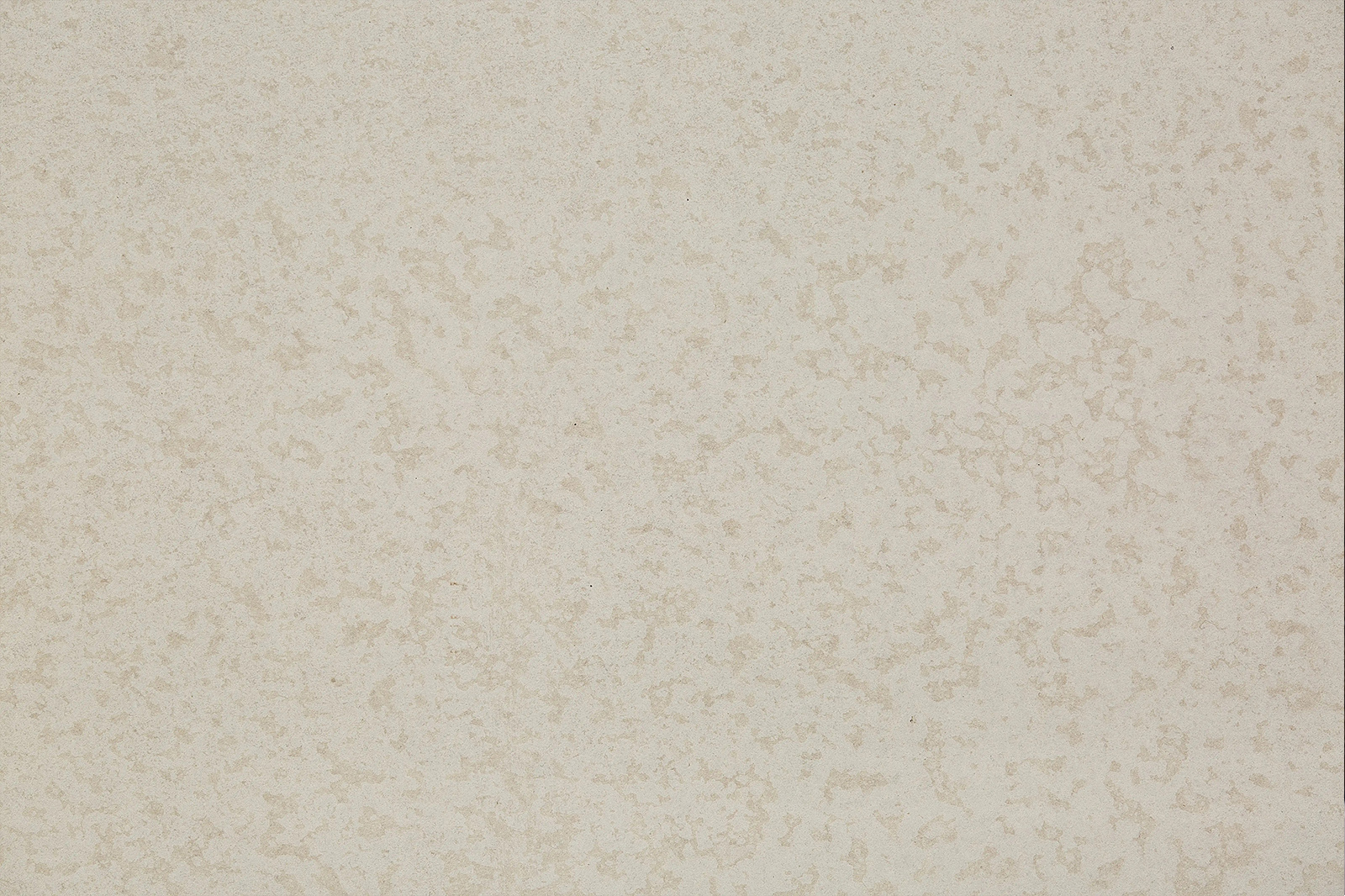

Product Display
Product Display
Product Details
Product Details
Production process
Raw Material Preparation
Slurry Formation
Molding & Forming
High-Pressure Autoclave Curing
Drying & Stabilization
Cutting & Finishing
Quality Control & Packaging
Characteristic
• Asbestos-Free & Eco-Friendly: Safe for living spaces, public buildings, and green construction projects.
• Fire Resistant – A1 Rated: Designed to meet high building safety requirements for partition walls.
• Moisture & Mold Resistant: Performs well in humid environments such as bathrooms, kitchens, and semi-outdoor areas.
• High Strength & Dimensional Stability: Reduced cracking and deformation over time.
• Easy to Install: Shortens construction time and improves efficiency for both renovation and new build projects.
• Sound Insulation: ensures both acoustic comfort and personal privacy.
• Anti-Corrosion and Anti-Termite: Resists chemical corrosion and insect infestation for long-term structural integrity.
Physical Properties
| Item | Low-density | Medium-density | High-density |
|---|---|---|---|
| Density g/cm³ | ≤1.10 | 1.1<D≤1.4 | >1.40 |
| Thermal Conductivity W/(m·k) | ≤0.2 | ≤0.25 | ≤0.30 |
| Moisture Content Rate % | ≤10 | ≤10 | ≤10 |
| Wet Expansion Rate % | ≤0.25 | ≤0.25 | ≤0.25 |
| Bending Strength Mpa (Dry) | ≥6 | ≥8 | ≥10 |
| Frost Resistance | 25 freeze-thaw cycles, no cracking, no delamination, no falling off. | ||
| Water Impermeability | 24hrs test, no water-drop | ||
| Asbestos Content | asbestos free（HJ/T223-2005） | ||
| Non-combustibility | Class A1（GB8624-2006） | ||
| Radio activity | IRa≤ 0.20；Ir≤ 0.25（GB6566-2010） | ||

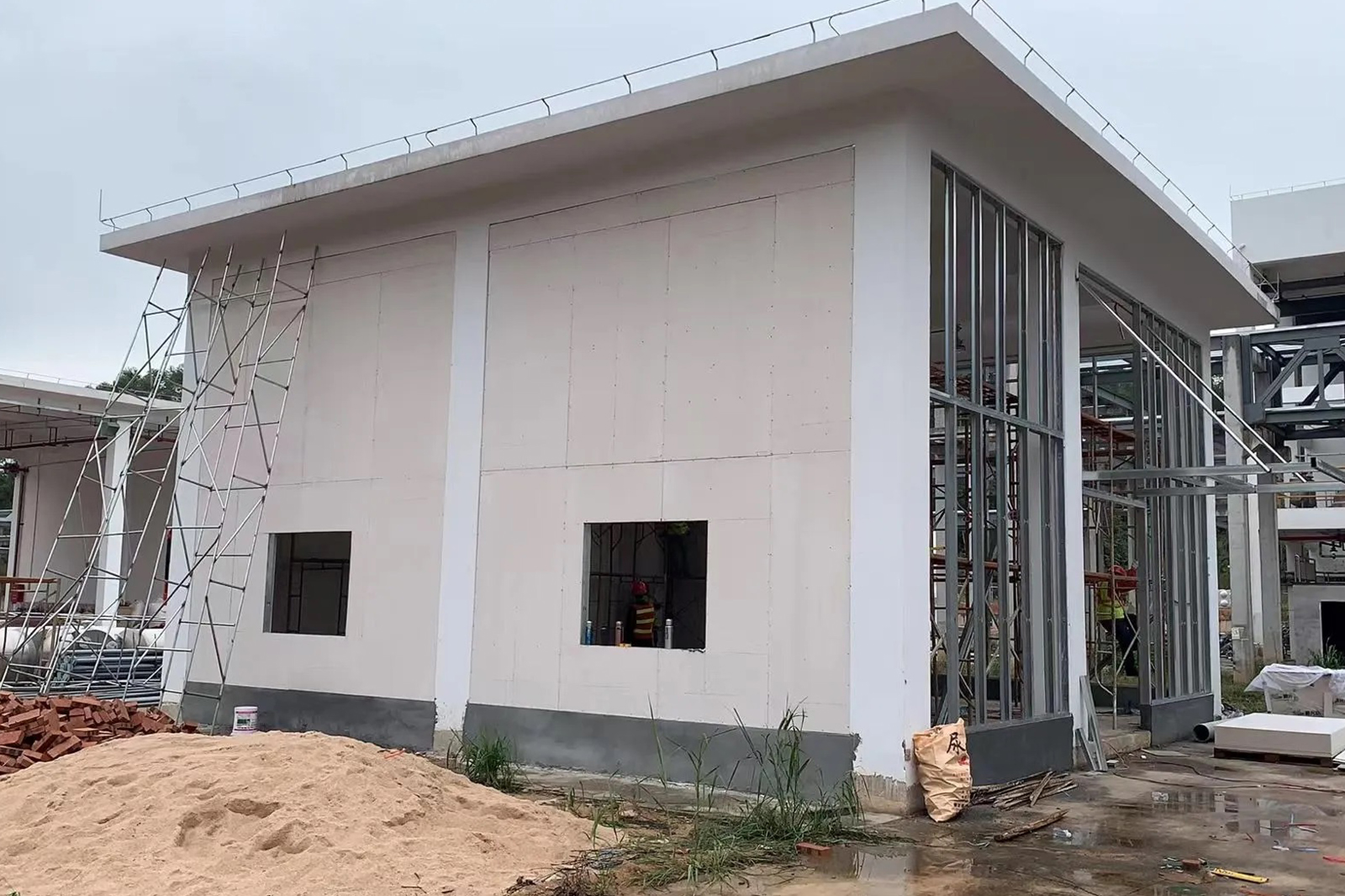

Product Cases
Product Cases
Application

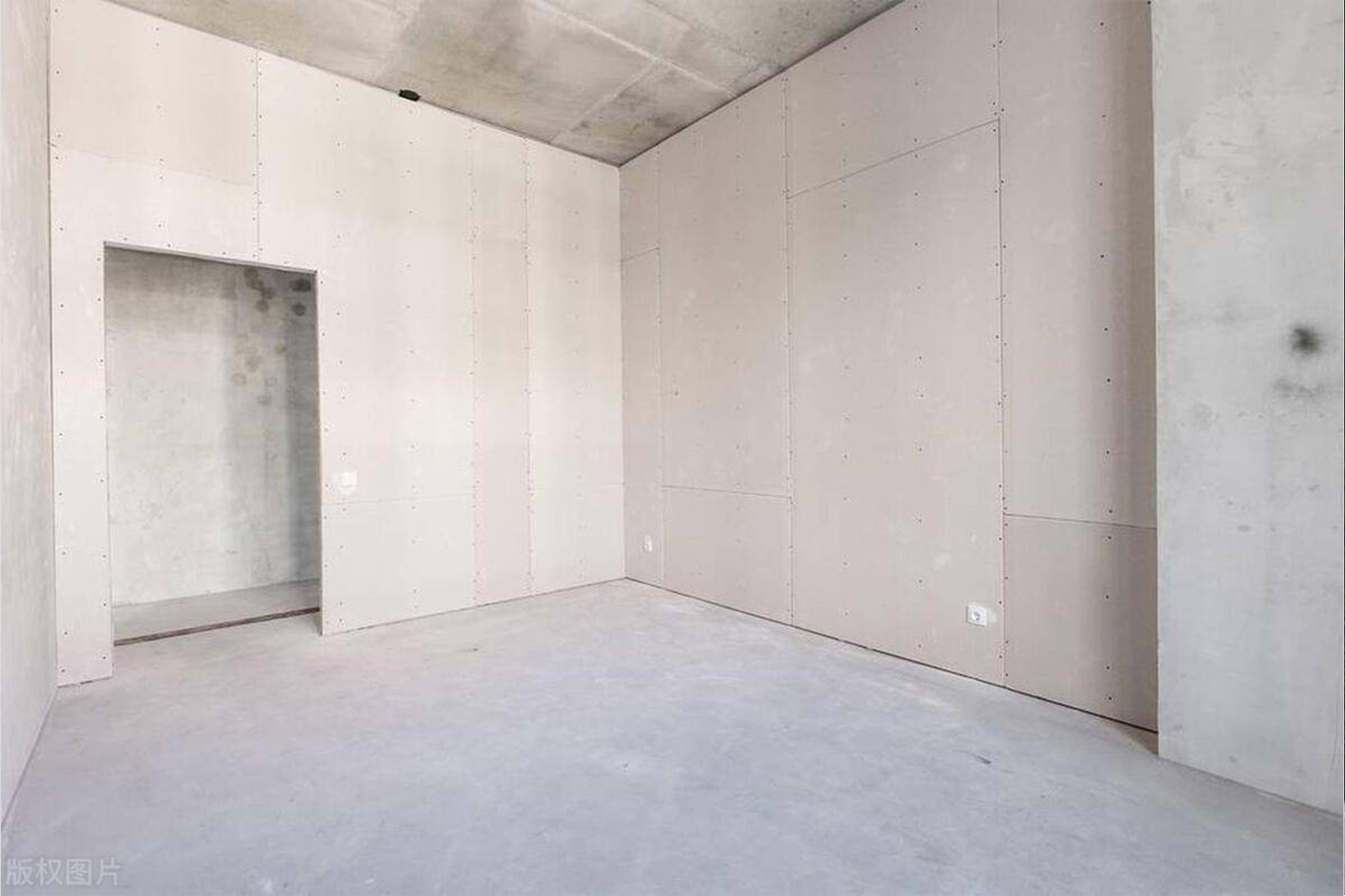

It can be used for all kinds of ceiling,partition, EPS board surface panel and composite wall board bottom panel and etc.
Standard Boards: For dry indoor use (walls, ceilings, partitions in offices, homes, schools).
Moisture-Resistant Boards: For wet areas (bathrooms, kitchens, laundries) or humid climates.
Fire-Rated Boards: For high-safety zones (hospitals, theaters, industrial facilities).

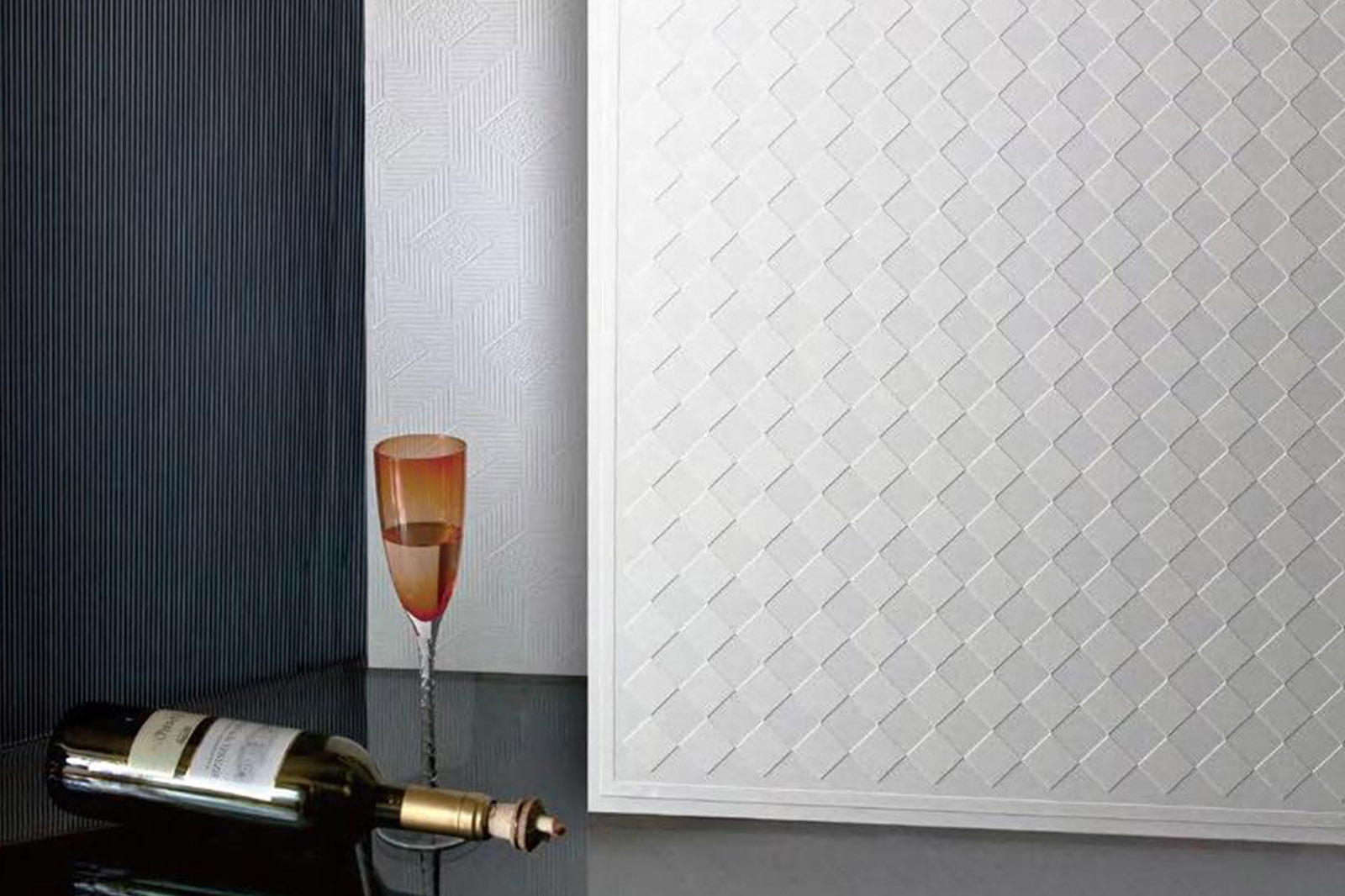

Decorative Boards: With textured or colored finishes for aesthetic-focused spaces (lobbies, retail stores, luxury homes).

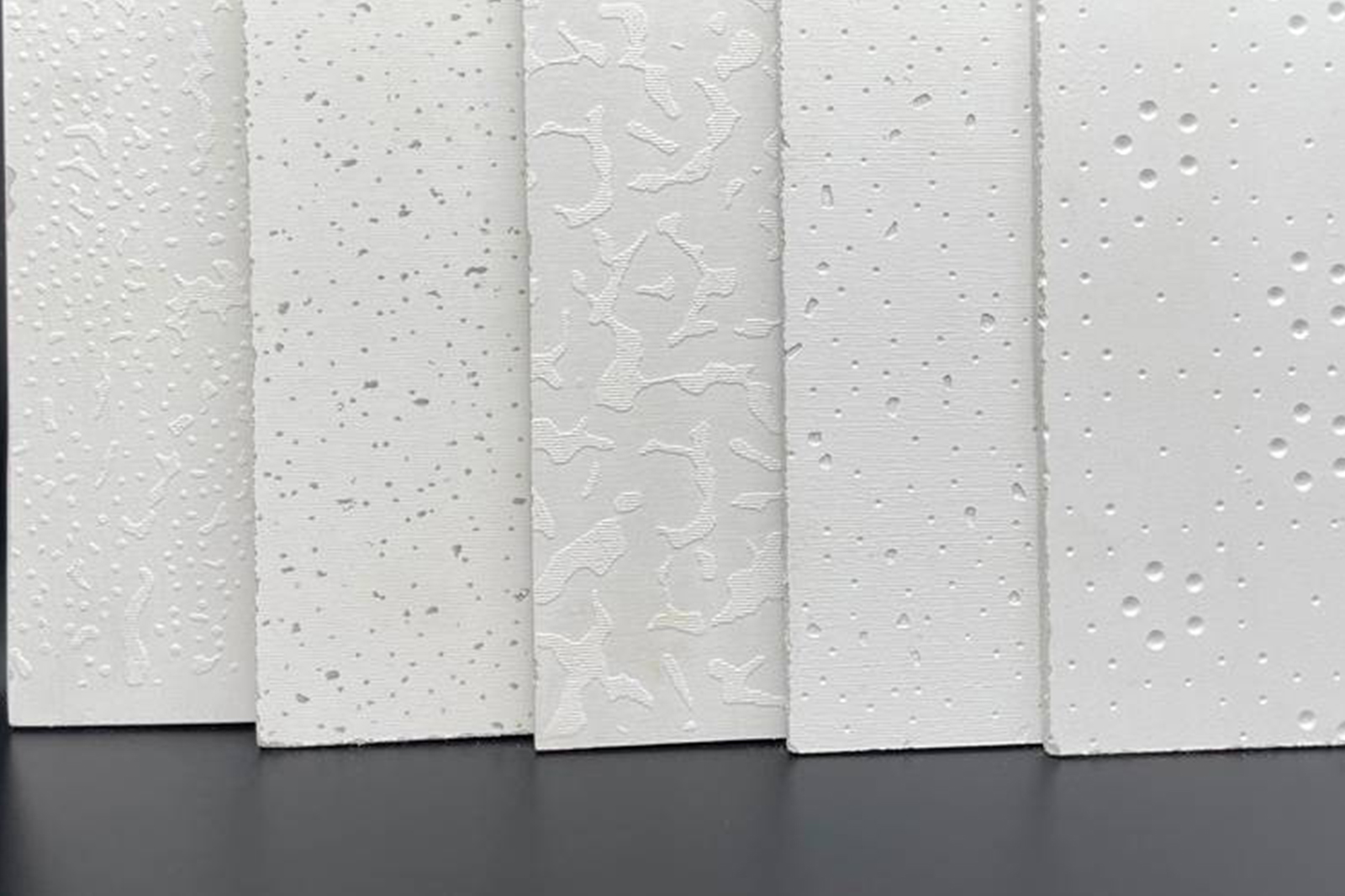

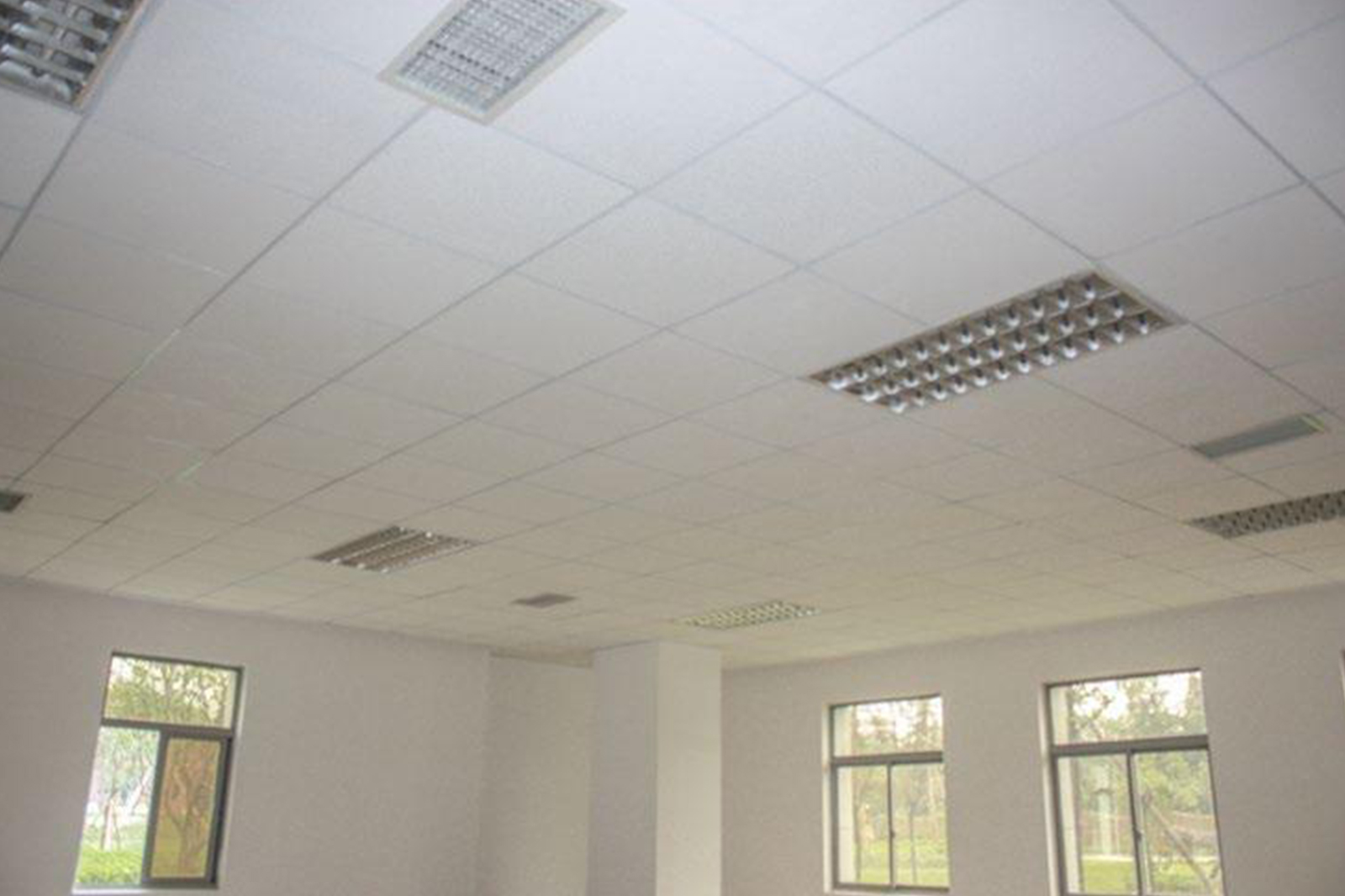

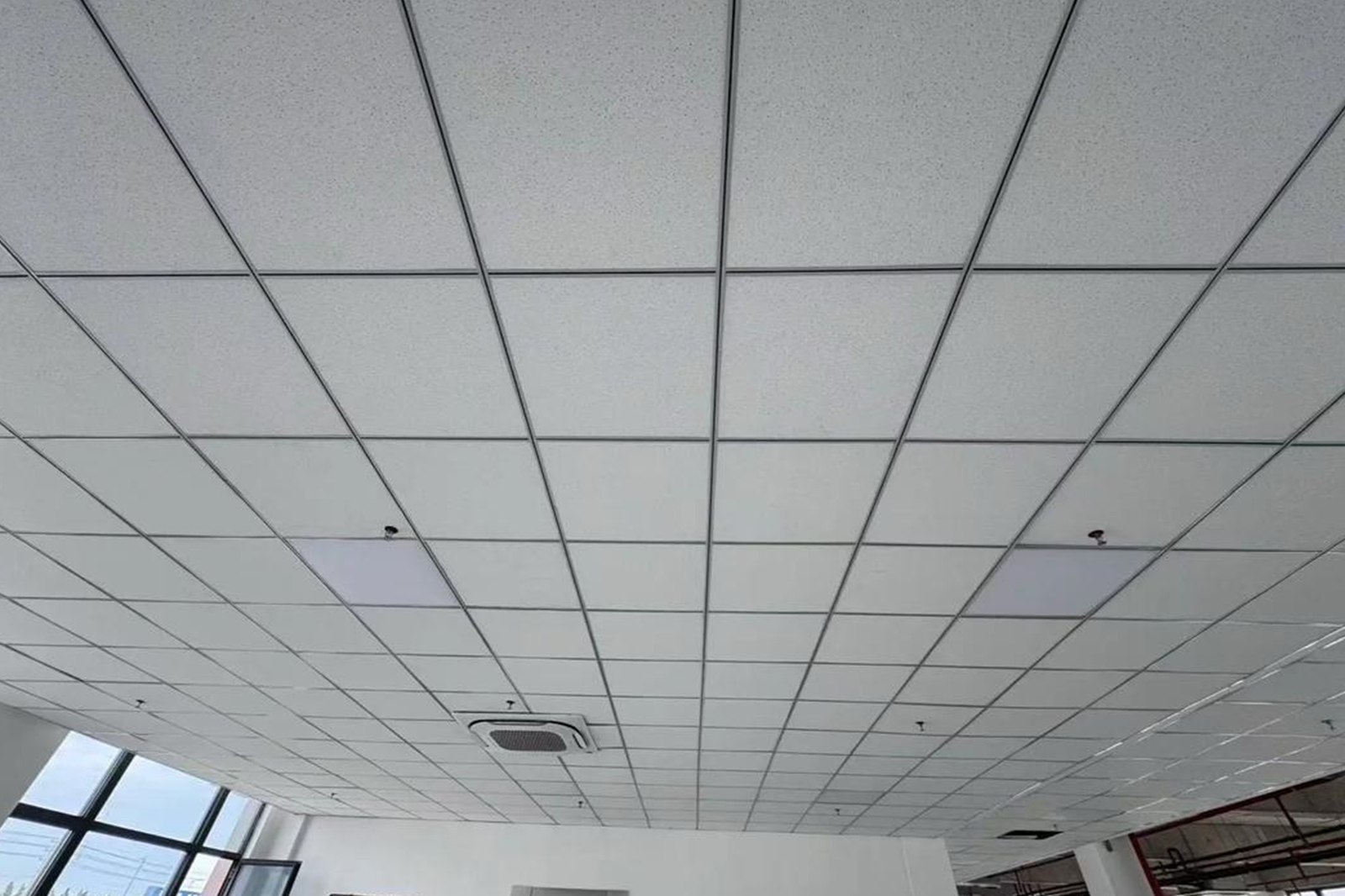

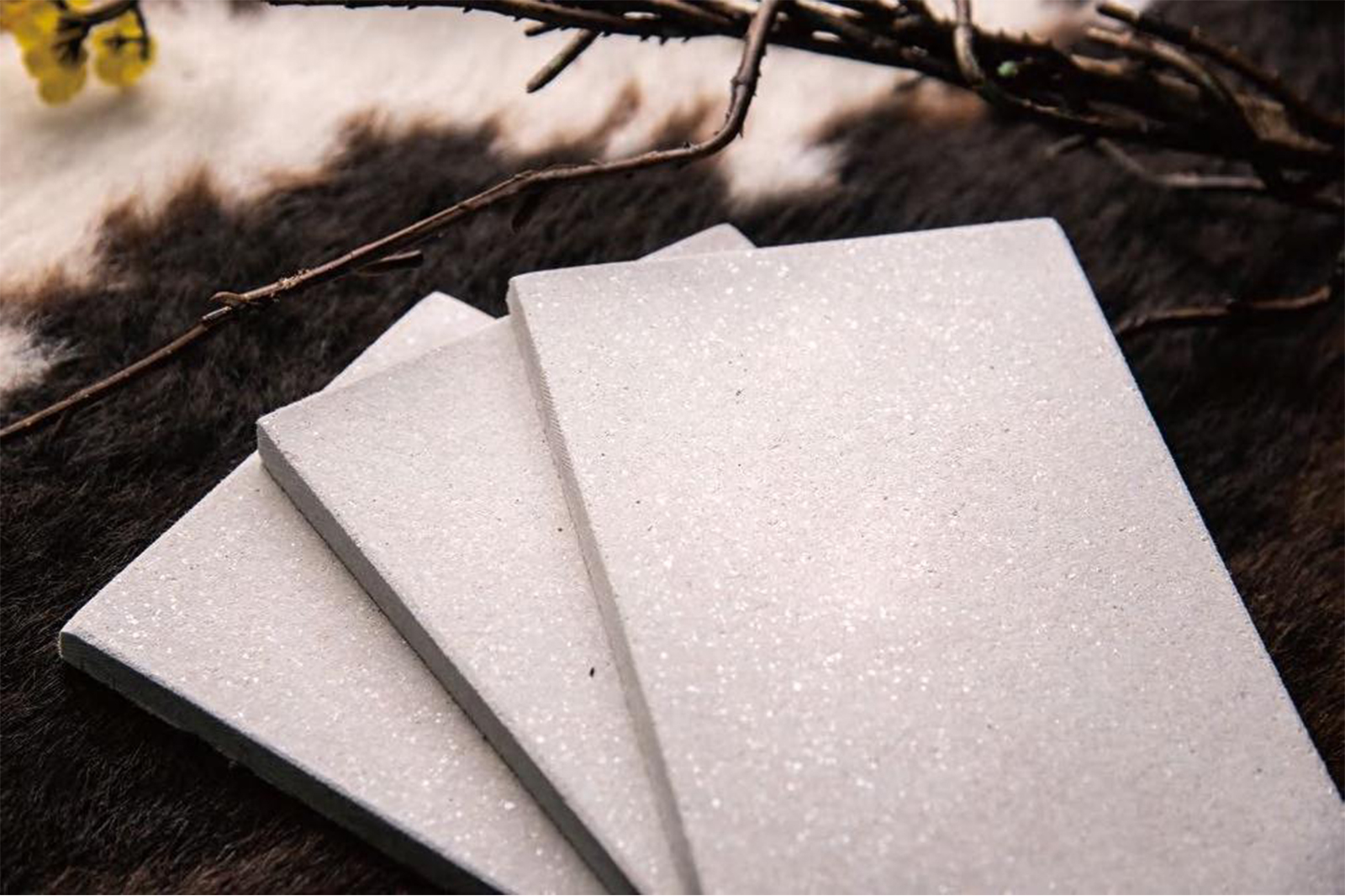

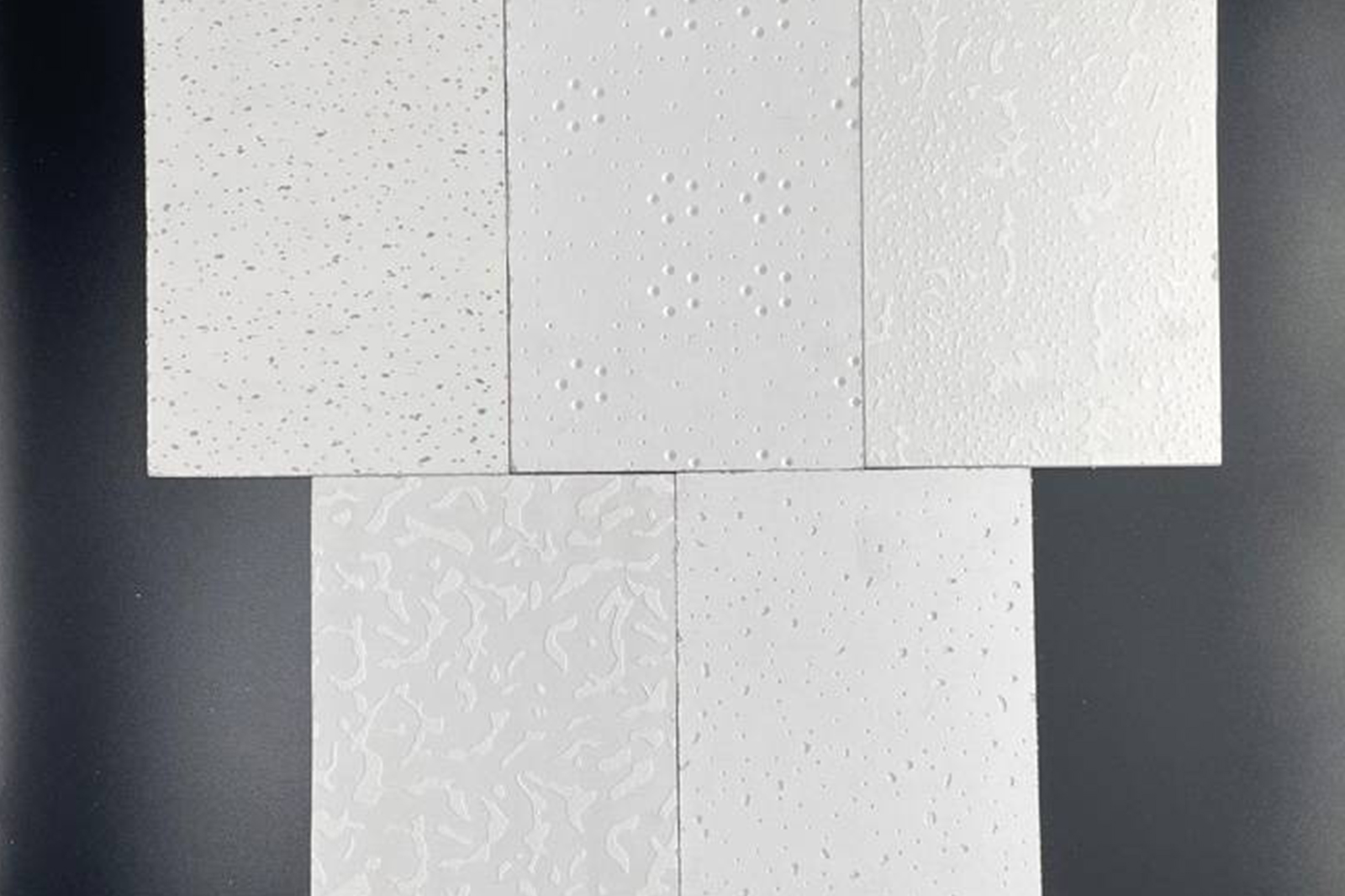

The calcium silicate ceiling is constructed from a calcium silicate base plate combined with a patterned surface layer. It offers multiple texture options to suit diverse design requirements.
Specification (mm): 603*603
Thickness (mm): 6/8/9/10/12/15
Density (g/cm3): 1.1-1.4
Colors and patterns are customizable based on samples.
Product Display
Product Display
Product Details
Product Details
Characteristic
• Anti-Corrosion and Anti-Termite: Resists chemical corrosion and insect infestation for long-term structural integrity.
• Asbestos-Free & Eco-Friendly: Safe for living spaces, public buildings, and green construction projects.
• Fire Resistant – A1 Rated: Designed to meet high building safety requirements for partition walls.
• Moisture & Mold Resistant: Performs well in humid environments such as bathrooms, kitchens, and semi-outdoor areas.
• High Strength & Dimensional Stability: Reduced cracking and deformation over time.
• Easy to Install: Shortens construction time and improves efficiency for both renovation and new build projects.
• Sound Insulation: ensures both acoustic comfort and personal privacy.
• Anti-Corrosion and Anti-Termite: Resists chemical corrosion and insect infestation for long-term structural integrity.
Physical Properties
| Item | Index |
|---|---|
| Surface Coating | Water based enamel paint, Waterproof UV Paint, Acrylic Latex Paint |
| Material | Non-asbestos Fiber Cement Board |
| Non-combustibility | Grade A1 |
| Density | 1.1 < D ≤ 1.4 g/cm³ |
| Radioactivity | IRa ≤ 1.0; Ir ≤ 1.0 (GB6566-2010) |
| Mildew and bacteria resistance | HG/T3950-2007 |
| ACID and Alkali Resistance | GB/T17748-2008 |
| Anti-pollution | GB/T3810.14-2006 |
| Standard Size | 595 X 595 X 6， 603 X 603 X 6 mm |
| Surface Coating | Water based enamel paint, Waterproof UV Paint, Acrylic Latex Paint |
| Material | Non-asbestos Fiber Cement Board |
| Non-combustibility | Class A1 |
Product Cases
Product Cases
Application

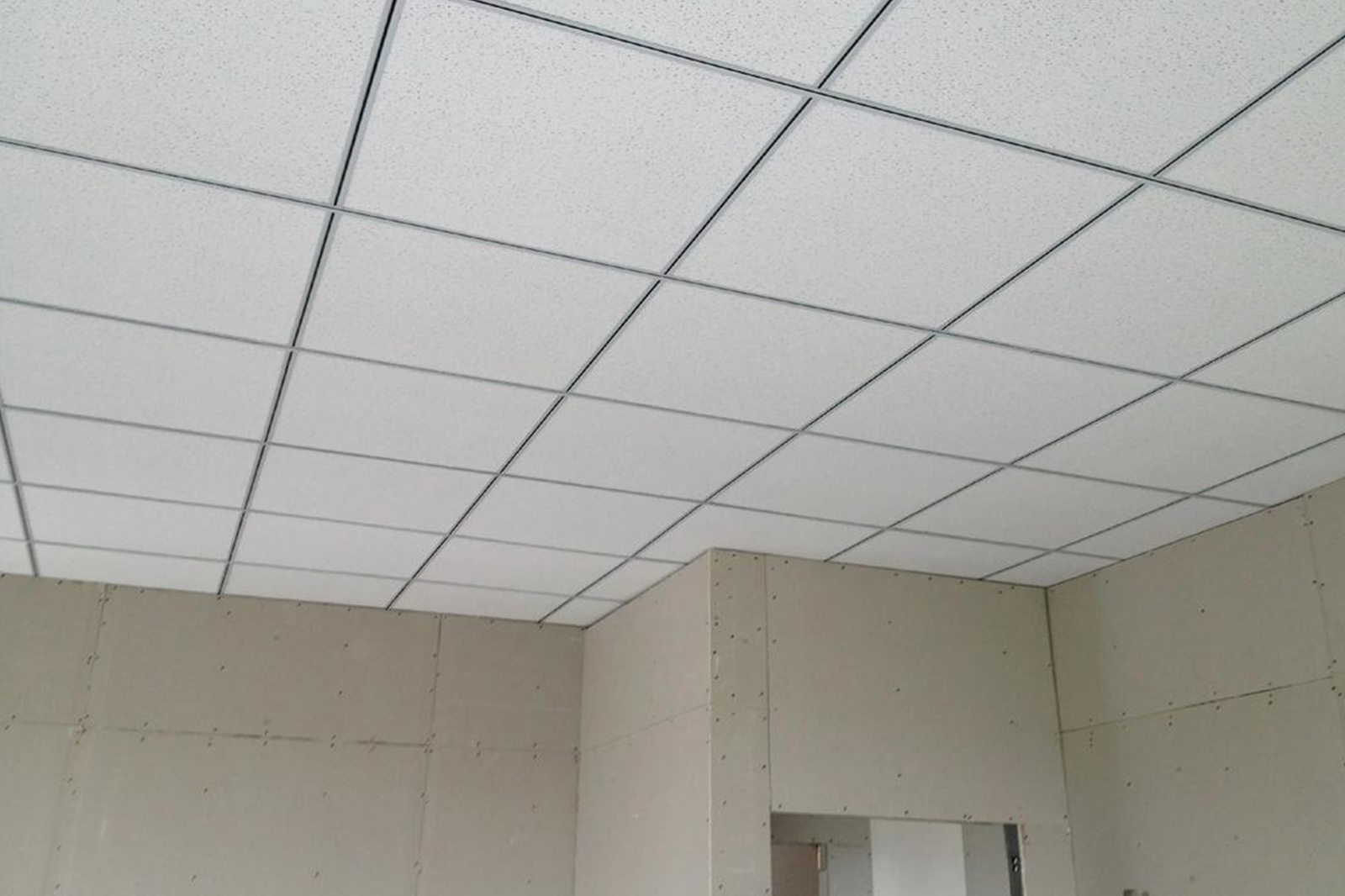

Widely used in Partition and Suspension System.

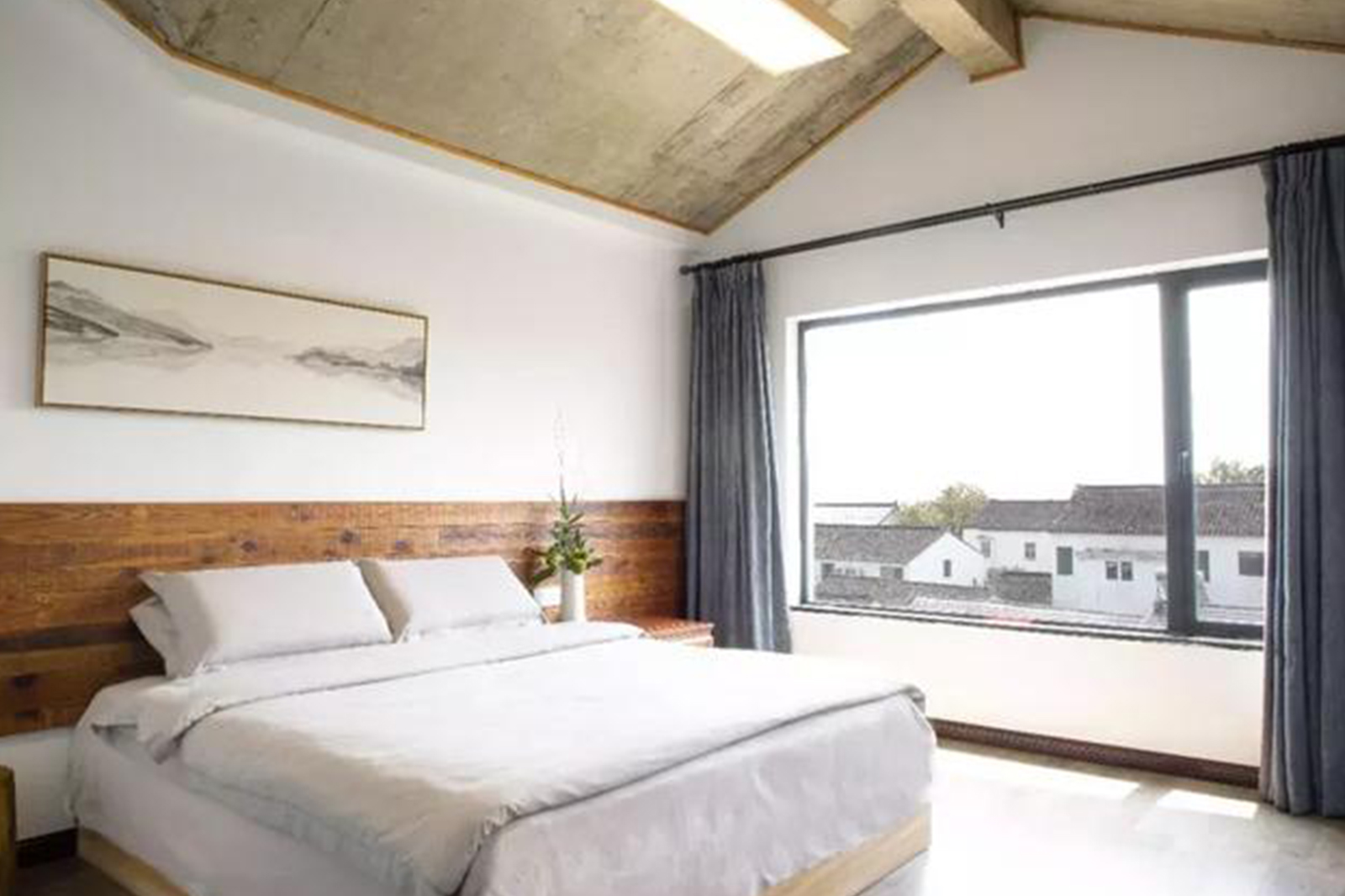

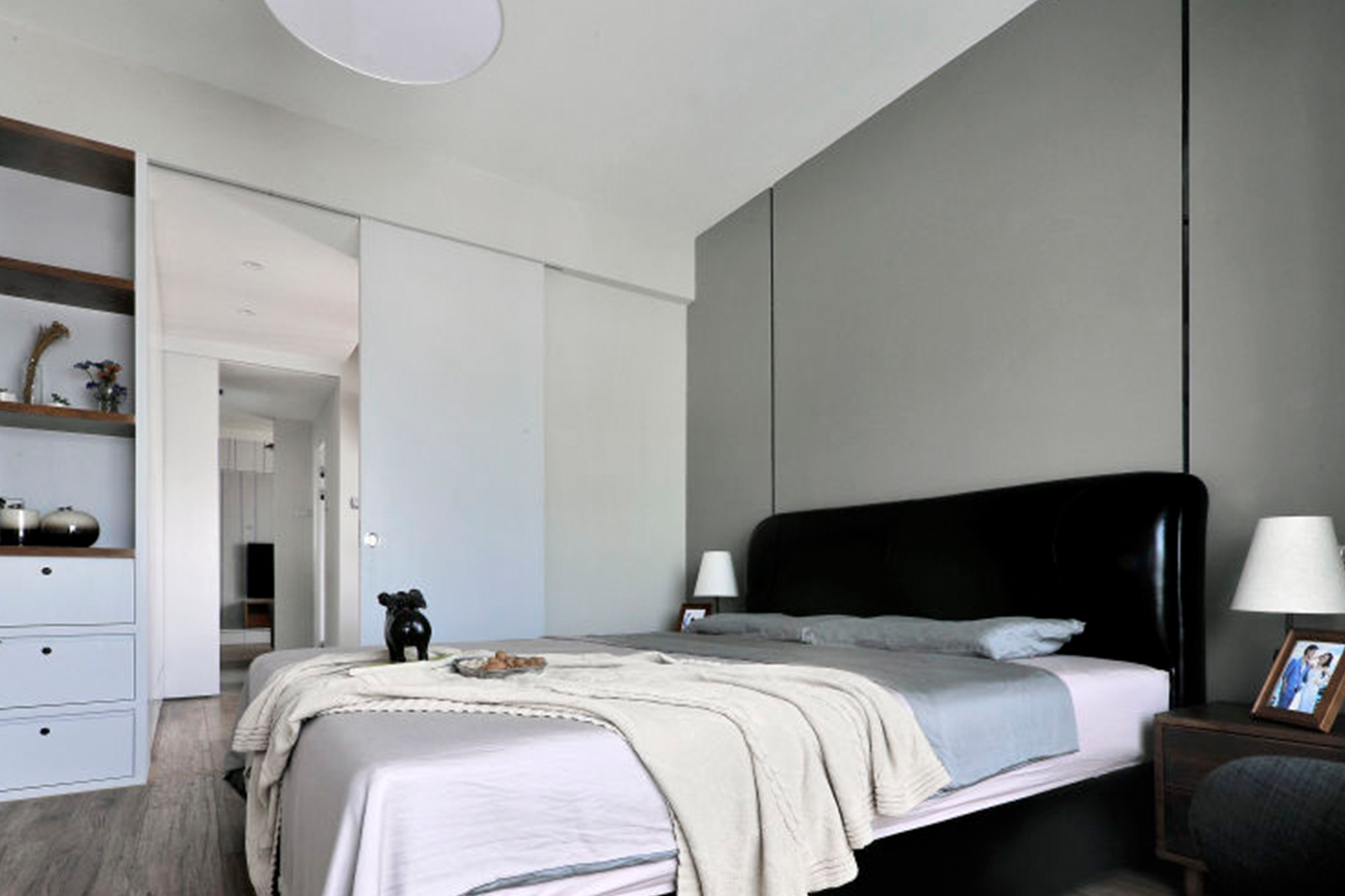

• Living spaces: Bedrooms, living rooms, and dining areas for a clean, modern aesthetic with smooth, paintable surfaces.
• Wet areas: Bathrooms, kitchens, and laundry rooms due to moisture resistance (prevents mold/mildew growth).
• Attics & basements: Ideal for humid or temperature-fluctuating zones, offering thermal stability and fire safety.
• Open-plan offices: Lightweight panels enable quick installation of suspended ceilings, improving airflow and acoustic comfort.
• Retail environments: Shopping malls, showrooms, and boutiques for sleek, customizable designs.
• Hotels & hospitality: Lobby ceilings, guest rooms, and conference areas to enhance visual appeal and meet fire safety codes.
• Educational facilities: Classrooms, schools, and universities for durable, low-maintenance ceilings that resist wear from daily use.
• Government buildings: Courts, offices, and public halls for long-lasting, code-compliant ceiling solutions.

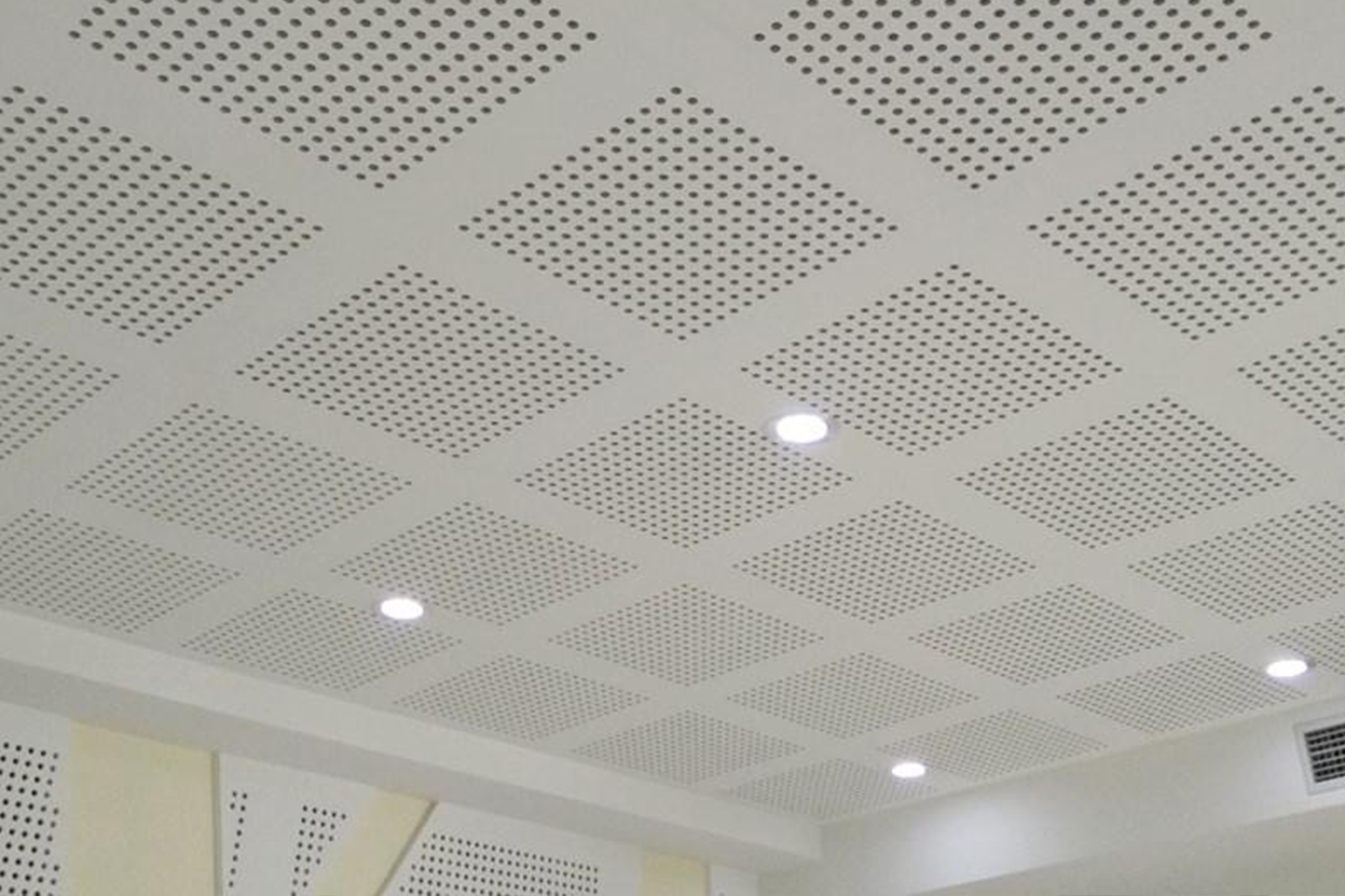

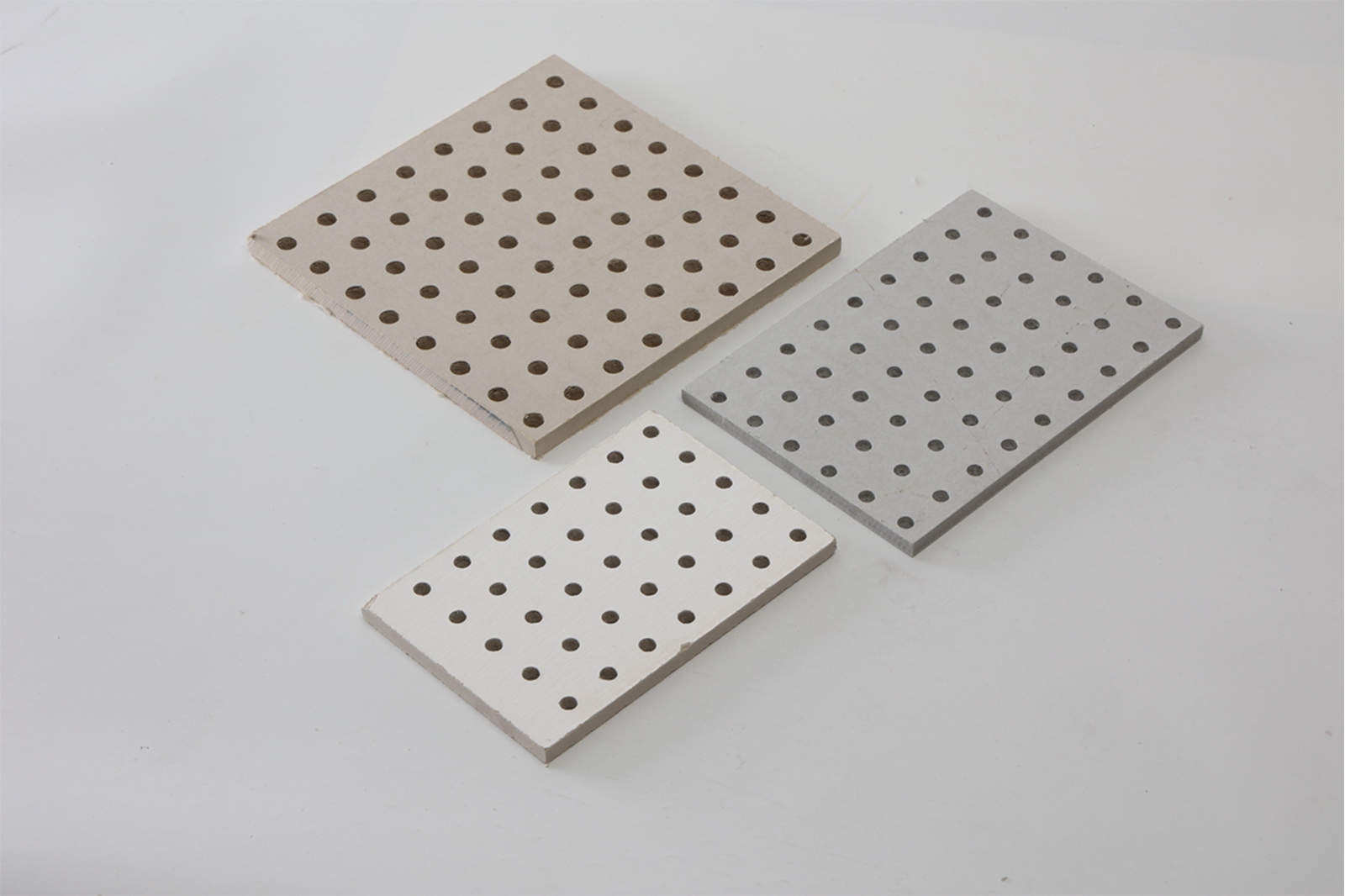

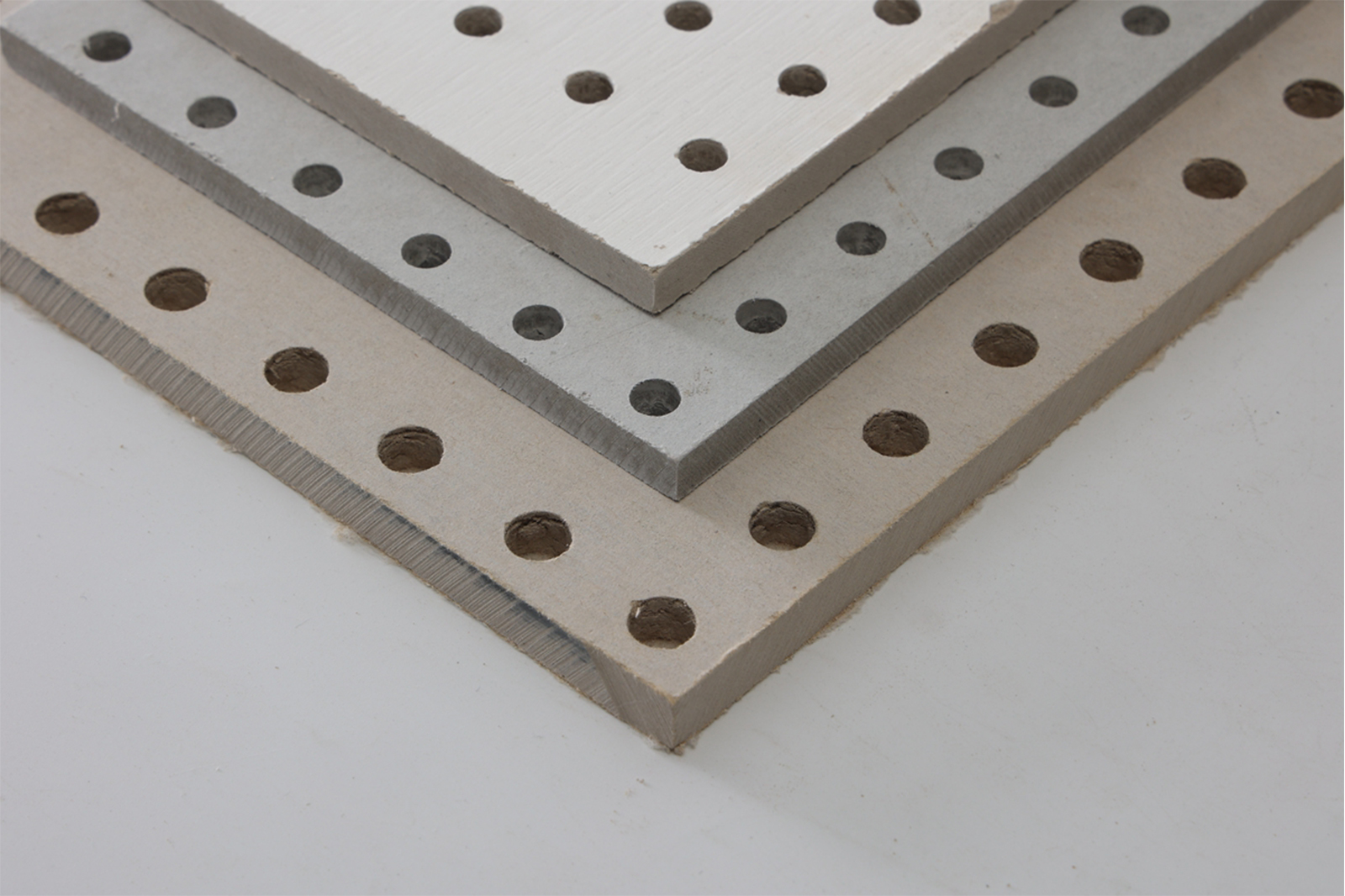

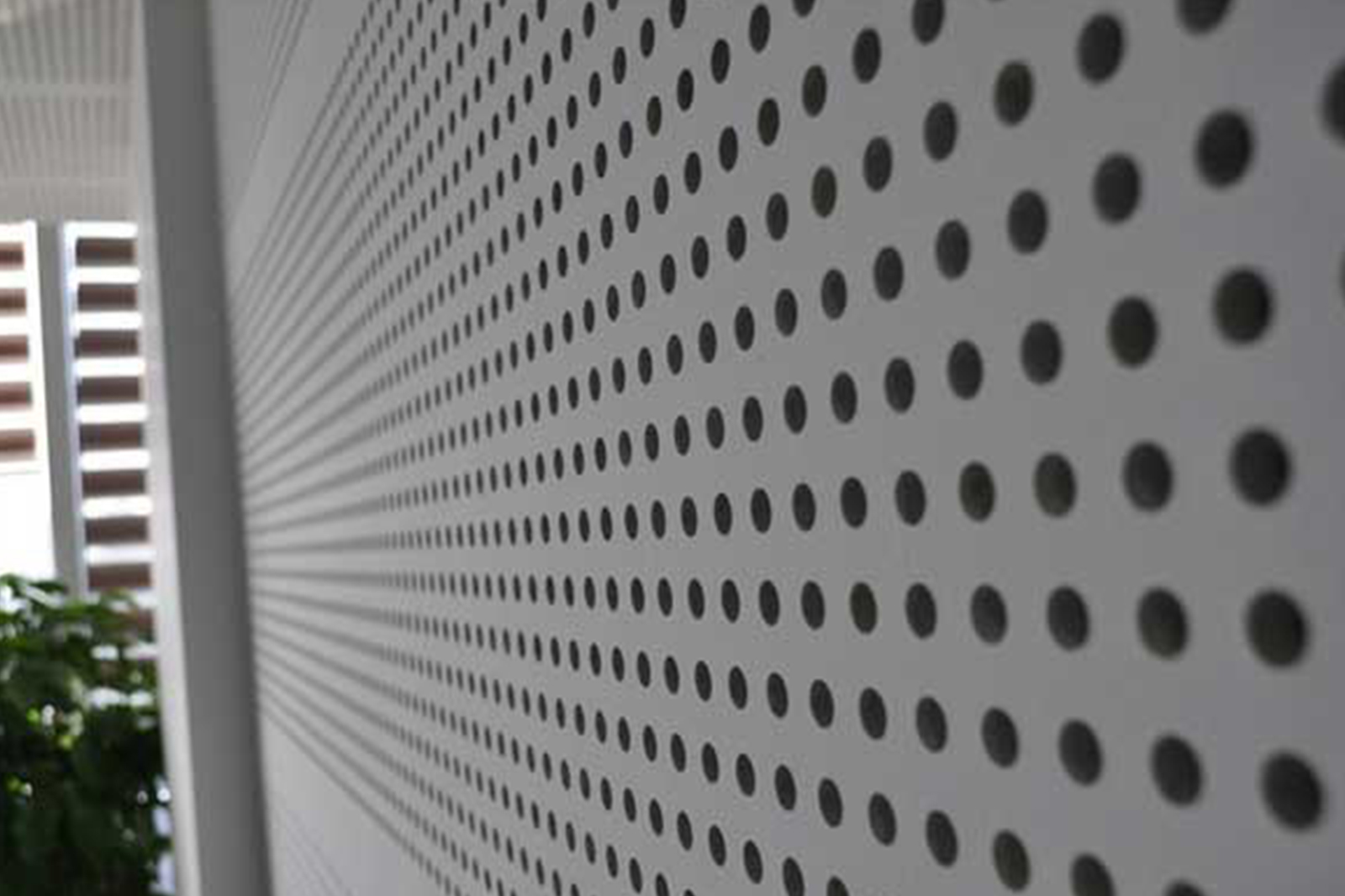

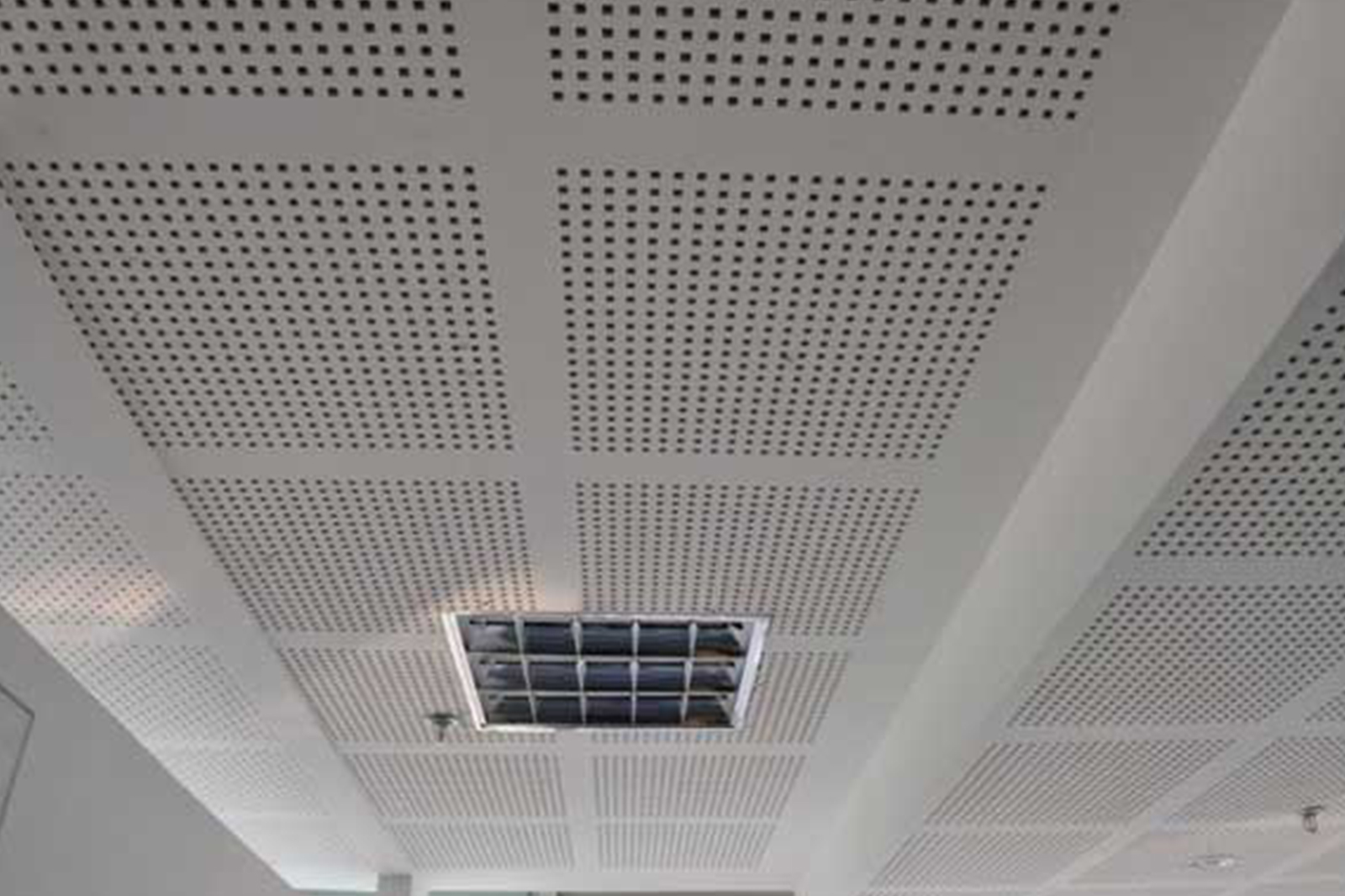

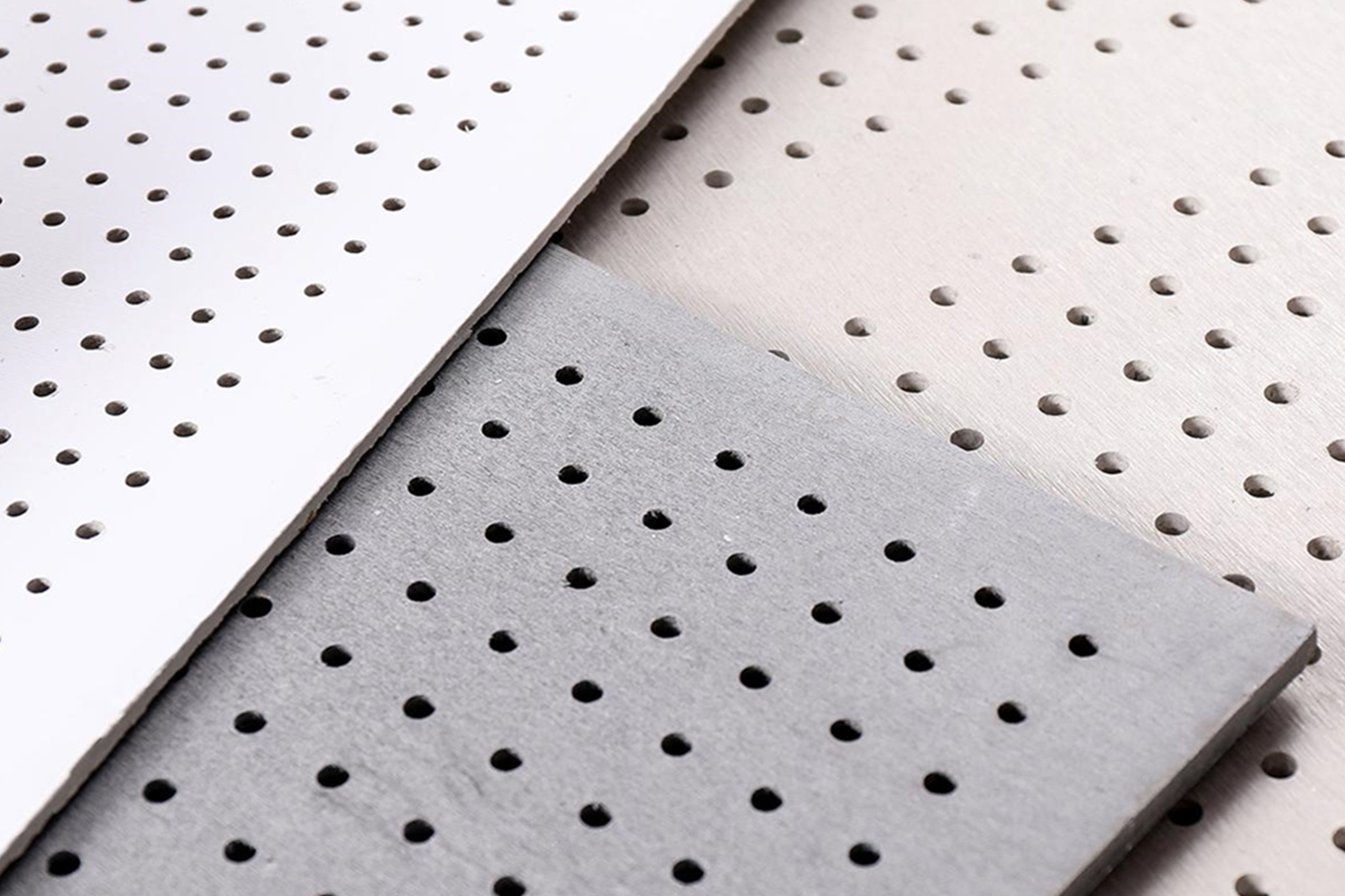

It is also known as perforated calcium silicate board, which is a medium-density calcium silicate substrate with customizable perforations and patterns. It delivers superior acoustic performance for noise control in diverse environments.
Specification (mm): 600*600
Thickness (mm): 6/8
Density (g/cm3):1.1-1.4
Colors and patterns are customizable based on samples.
Product Display
Product Display
Product Details
Product Details
Characteristic
• Anti-Corrosion and Anti-Termite: Resists chemical corrosion and insect infestation for long-term structural integrity.
• Asbestos-Free & Eco-Friendly: Safe for living spaces, public buildings, and green construction projects.
• Fire Resistant – A1 Rated: Designed to meet high building safety requirements for partition walls.
• Moisture & Mold Resistant: Performs well in humid environments such as bathrooms, kitchens, and semi-outdoor areas.
• High Strength & Dimensional Stability: Reduced cracking and deformation over time.
• Easy to Install: Shortens construction time and improves efficiency for both renovation and new build projects.
• Sound Insulation: ensures both acoustic comfort and personal privacy.
• Anti-Corrosion and Anti-Termite: Resists chemical corrosion and insect infestation for long-term structural integrity.
• Dimensionally Stable & Durable: Resists deformation, cracking, and warping.
Physical Properties
| Item | Index |
|---|---|
| thermal conductivity | ≤0.25 W/(m·K) |
| moisture content rate | ≤10 % |
| wet expansion rate | ≤0.25 % |
| Non-combustibility | Grade A1 |
| Bending Force | ≥180/N |
| Asbestos Content | asbestos free（HJ/T223-2005） |
| Radioactivity | IRa≤ 1.0; Ir≤ 1.0（GB6566-2010） |
Product Cases
Product Cases
Application
• Offices: Boost productivity by reducing distractions and improving communication.
• Retail Spaces: Elevate brand experience with a calm, inviting acoustic atmosphere.
• Schools: Enhance learning outcomes through clearer speech and reduced echo.
• Hospitals: Lower stress-inducing noise levels, support patient rest, and ensure privacy in consultation rooms.
• Residential Buildings: Reduce inter-floor noise (e.g., footsteps, TV sounds) and improve living comfort.
• Cultural Venues: Maintain a quiet atmosphere for visitors and protect exhibits from noise disturbance.
• Theaters: Optimize sound absorption and prevent external noise interference.
• Concert Halls: Refine acoustics, eliminate reverberation, and enhance audio quality for performances.
• Specialized Spaces: Deliver studio-quality acoustics for professional audio production.
• Factories: Dampen machinery noise, improve worker safety, and comply with occupational health regulations.
• Transportation Hubs: Reduce crowd noise, improve wayfinding clarity, and create a calmer travel environment.
• Parking garages: Mitigate echo and enhance ventilation system noise reduction.

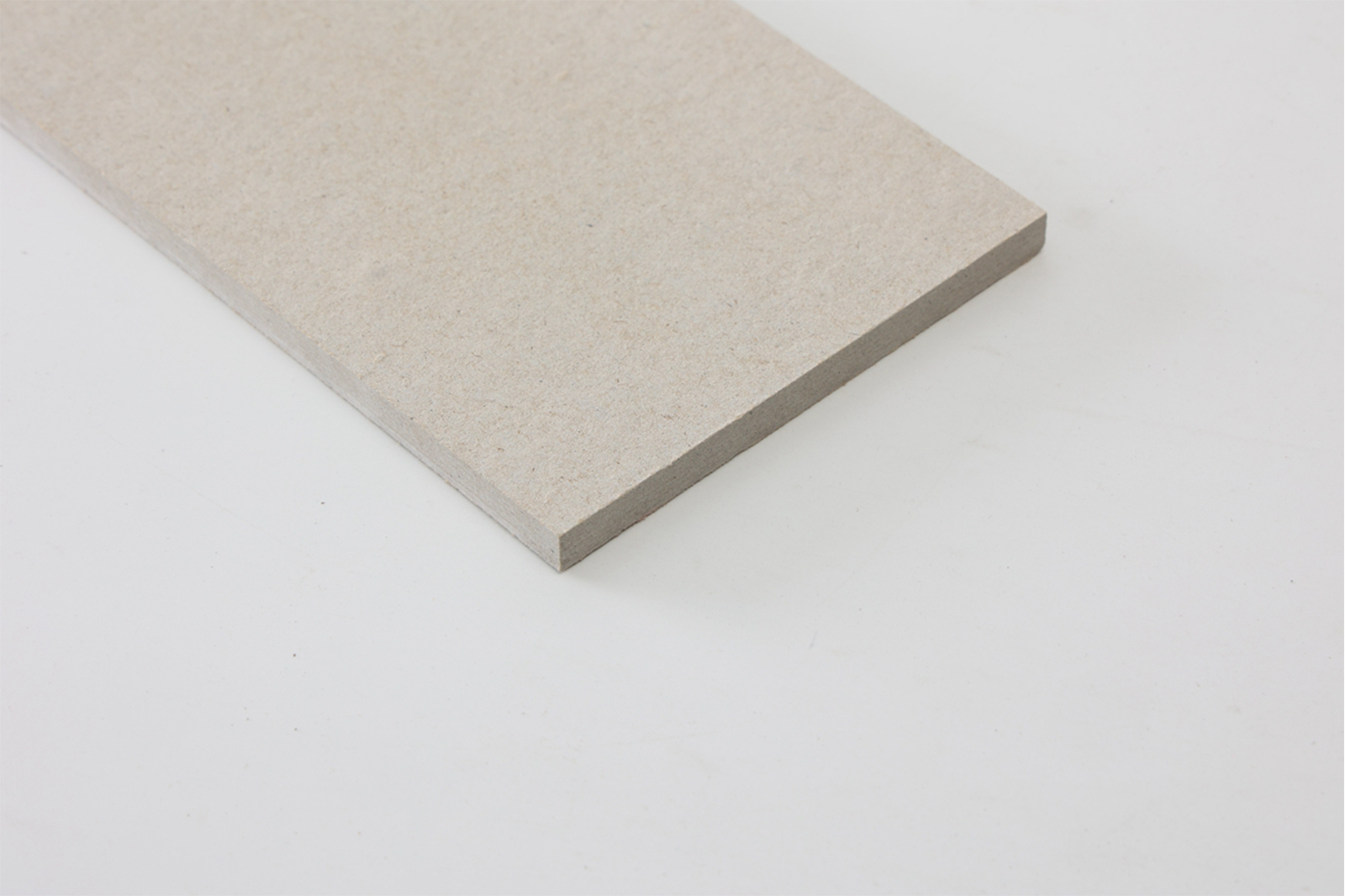

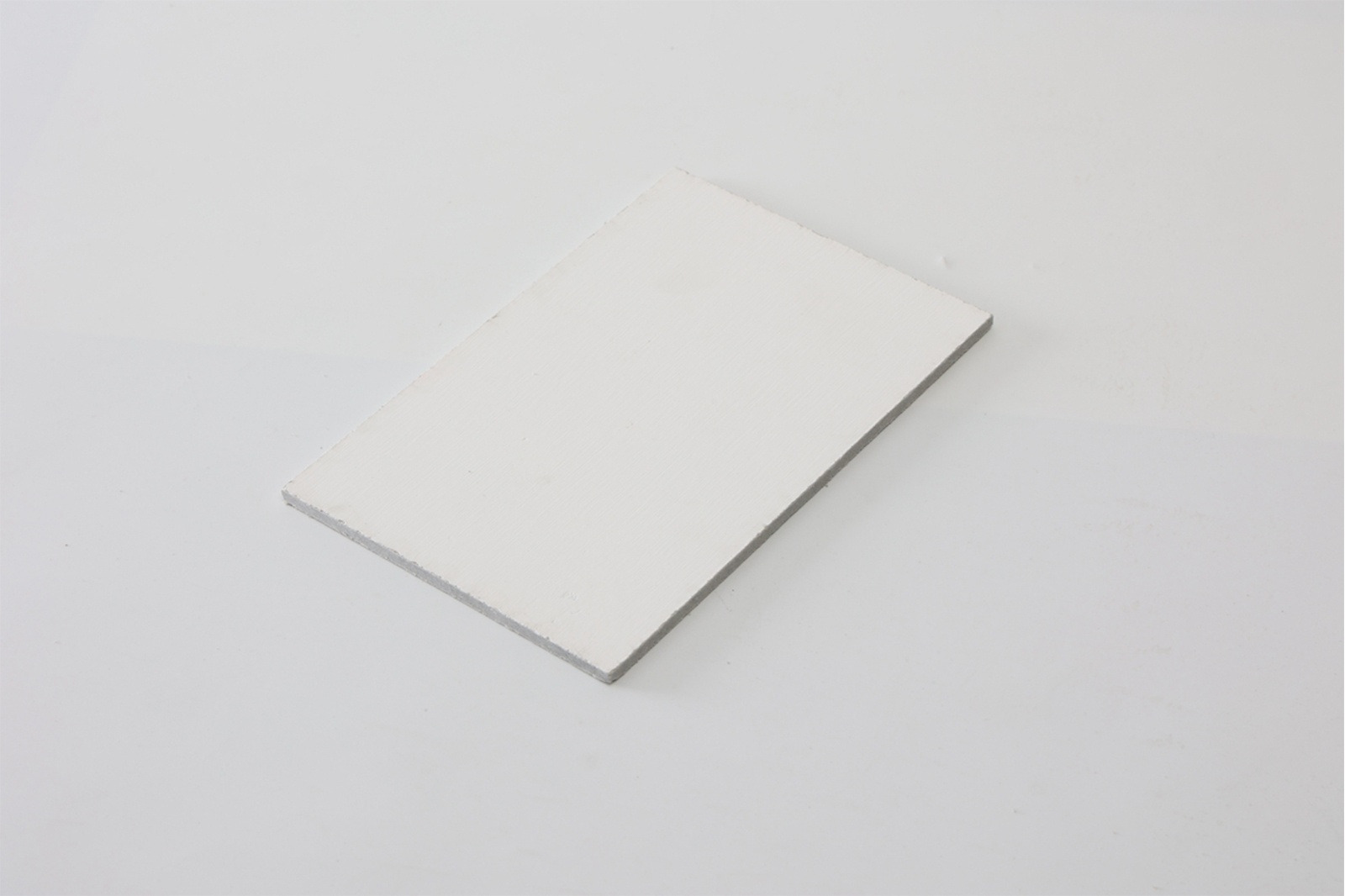

Specially designed for construction applications requiring high fire-rating standards, Fire-Resistant Board is a low-density calcium silicate panel featuring moisture resistance and superior fire resistance.
Specification (mm): 2440*1220
Thickness (mm): 8/9/10/12/15/24
Product Display
Product Display
Product Details
Product Details
Characteristic
• Non-Asbestos Composition: Made without asbestos fibers, ensuring safe handling and compliance with international health standards.
• Fire Resistance: Meets stringent fire rating standards, maintaining integrity under high-temperature conditions.
• Controlled Explosion Relief: Designed to rupture at predetermined pressure levels, safely venting blast energy while minimizing debris.
• Corrosion & Moisture Resistance: Resists chemical corrosion and water absorption, suitable for harsh industrial environments.
• Easy Installation: Pre-fabricated panels allow quick assembly with standard tools, reducing construction time and labor costs.
• Dimensional Stability: Maintains shape and performance under temperature fluctuations and humidity variations.
• Cost-Effective Solution: Lower overall project cost compared to traditional reinforced concrete blast protection systems.
Physical Properties
| Item | Index | |
|---|---|---|
| Type1 | Type2 | |
| Density | 975 | 770≤D≤870 |
| Water Content Rate | ≤10 % | ≤10 % |
| Water Expansion Rate | ≤0.20 % | ≤0.25 % |
| Thermal Conductivity | ≤ 0.20 W/(m·k) | ≤ 0.16 W/(m·k) |
| Bending Strength (Dry) | ≥5.5 Mpa | |
| Impact Resistance | ≥1.0 kJ/m | |
| Smoke toxicity | AQ Security Level(GB/T20285-2006) | |
| Asbestos Content | asbestos free（HJ/T223-2005） | |
| Radioactivity | IRa≤0.20; Ir≤0.25 | |
| Frost Resistance | 25 freeze-thaw cycles, no cracking, no delamination, no falling off | |
| Water Impermeability | 24hrs test, no water-drop | |
| Non-combustibility | Class A1（GB8624-2006） | |
| Water Resistance | After 30 days of test, no crack, no delamination, no shedding, no swelling, no discoloration | |
| Acid Resistance | After 15 days of test, no crack, no delamination, no shedding, no swelling, no discoloration | |
| Alkali Resistance | After 15 days of test, no crack, no delamination, no shedding, no swelling, no discoloration | |
Product Cases
Product Cases
Application
• Fire Prevention: Delivers superior fireproof protection and compliance

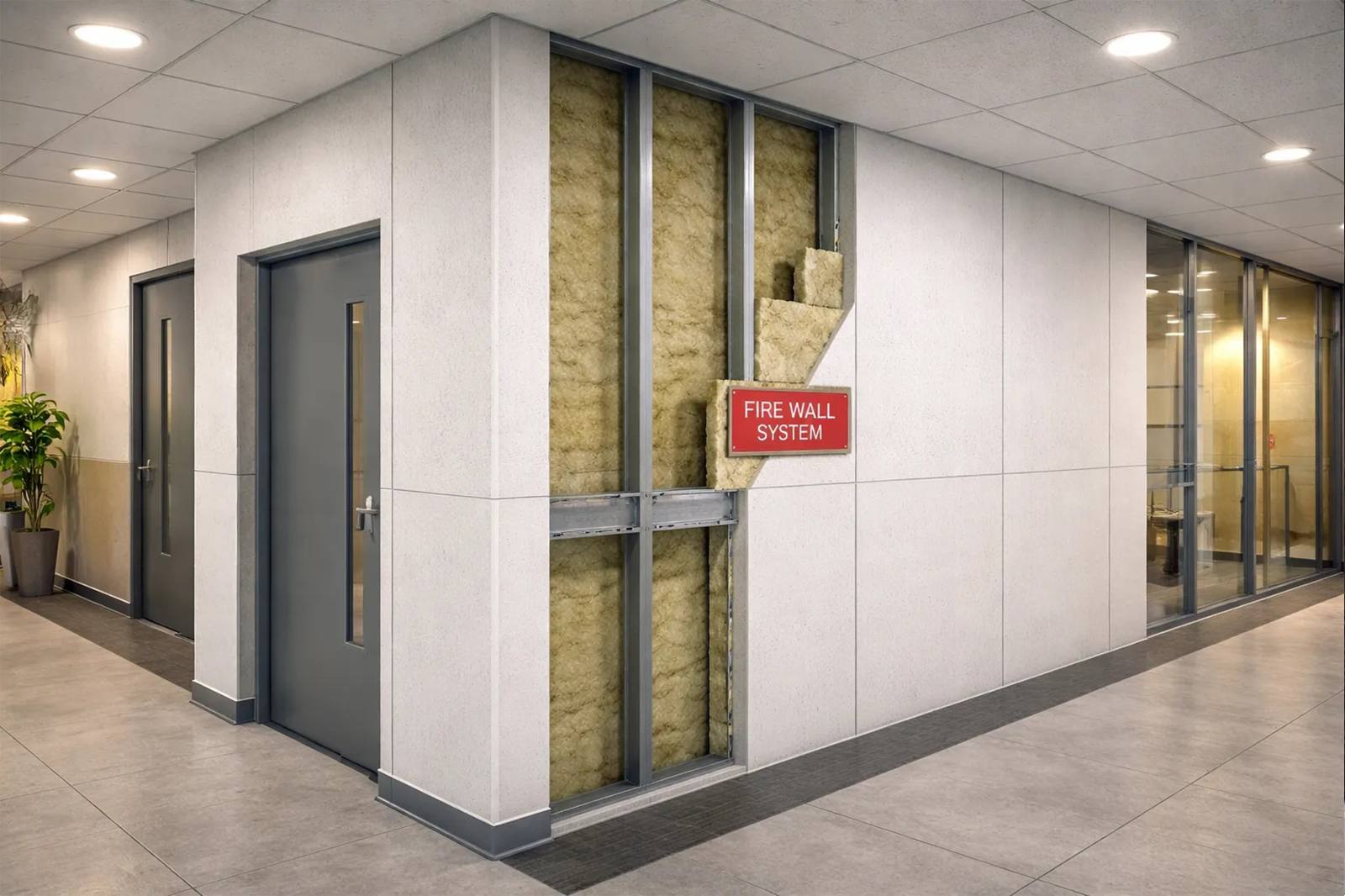

Fire Wall System；Ceiling Fire Proof System；M&E Services Enclosures；Curtain Wall Fireproof Skirt & Sealing；Fire-resisting Rolling Shutter；Ventilation and Smoke Extraction Ducts；Steel Beam Fire Protection；Steel Column Fire Protection；Cavity & Smoke Barriers；Pipe Well Enclosures
• Other Applications: widely used in offices, hotels, hospitals, factory buildings, schools, villas, theaters and various art buildings.
