Exterior Board
Exterior Board

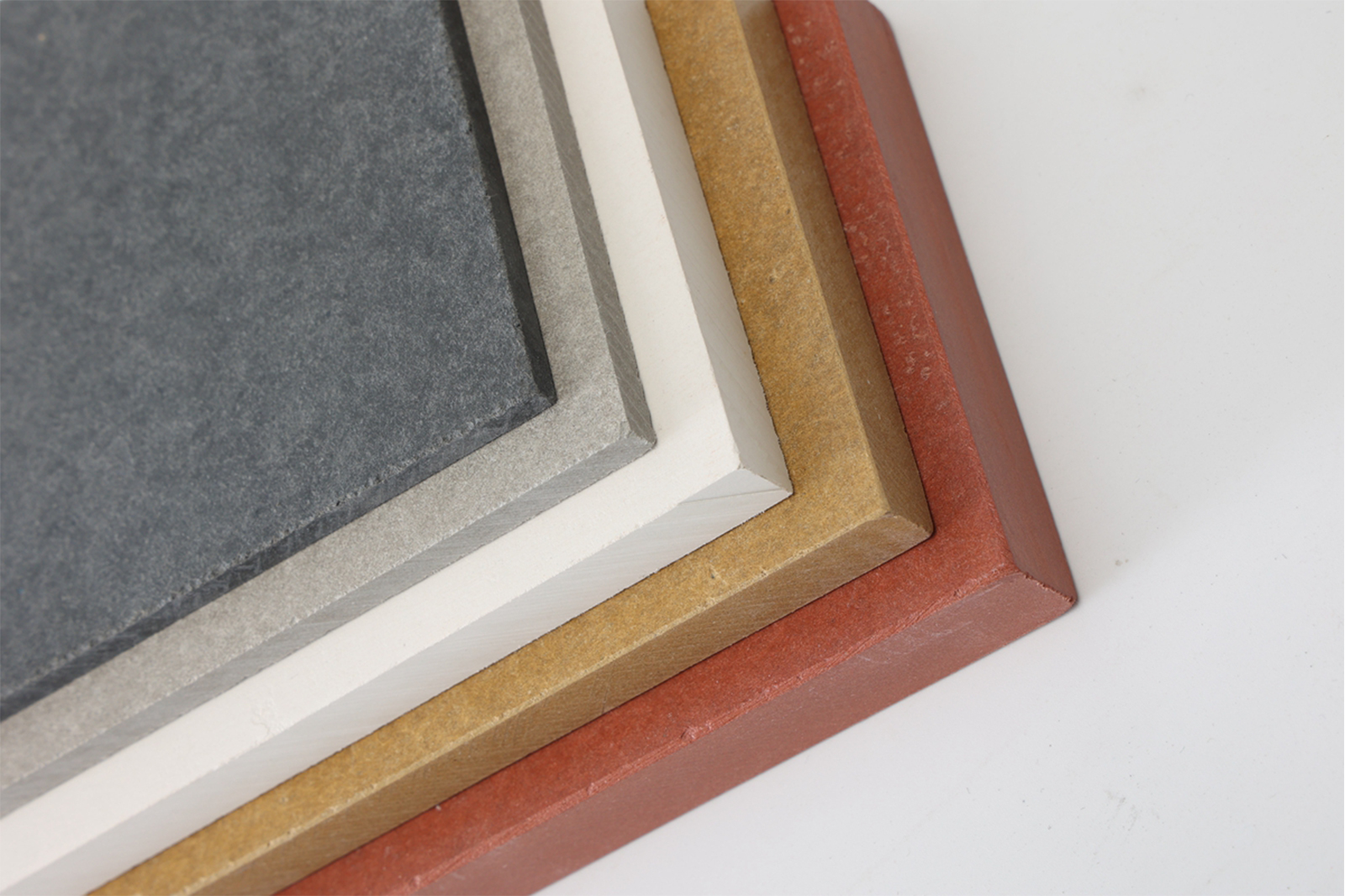

Through-Colored Board is a high-density, high-strength fiber cement panel engineered for exterior applications. It has consistent color throughout the material, paired with low water absorption for superior weather resistance. Customizable colors and styles via sample reference.
Specification (mm): 2440/3050*1220
Thickness (mm): 8/9/10/12/15
Density (g/cm3):≥1.40
Colors and patterns are customizable based on samples.

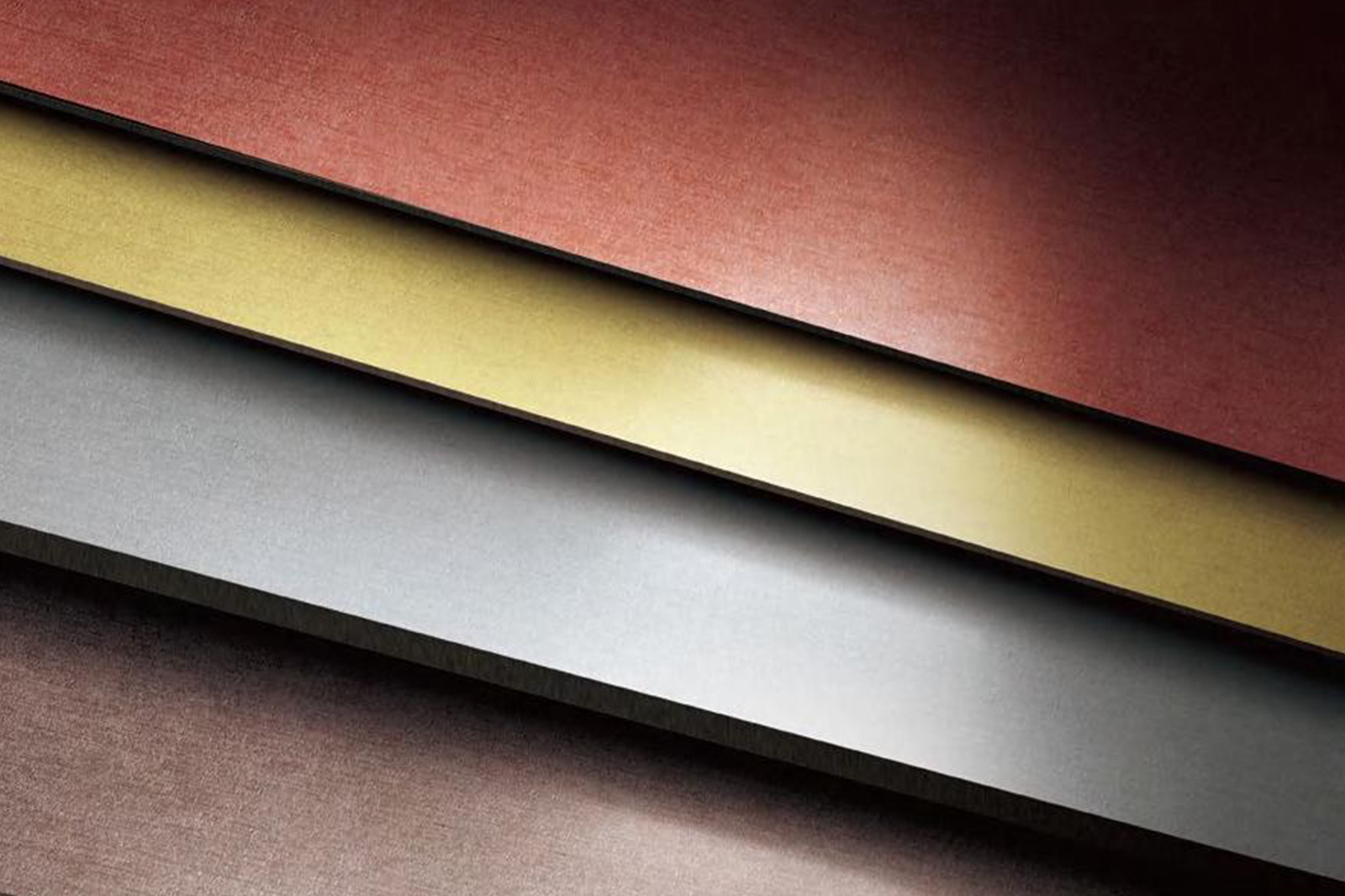

Product Display
Product Display

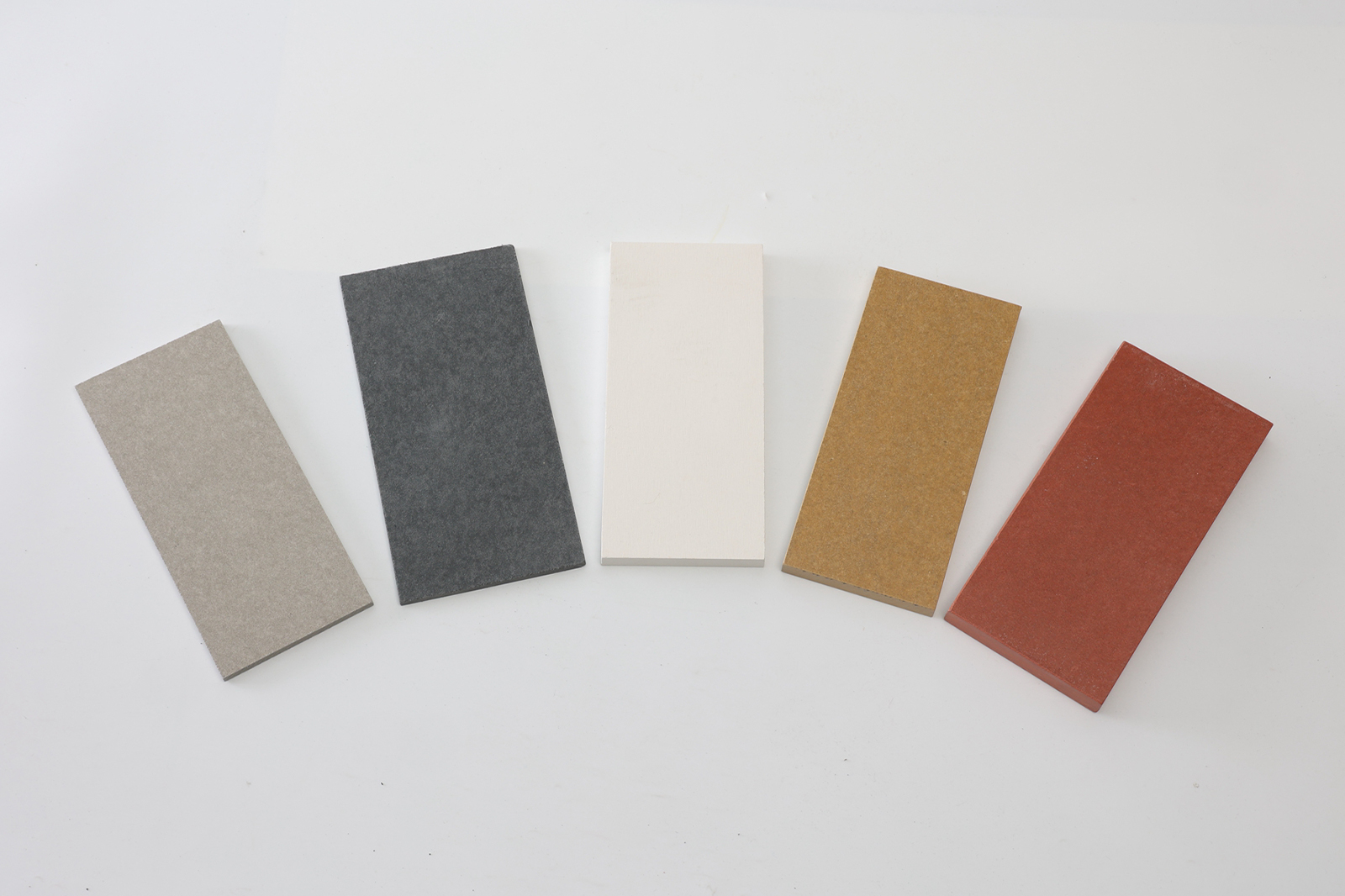

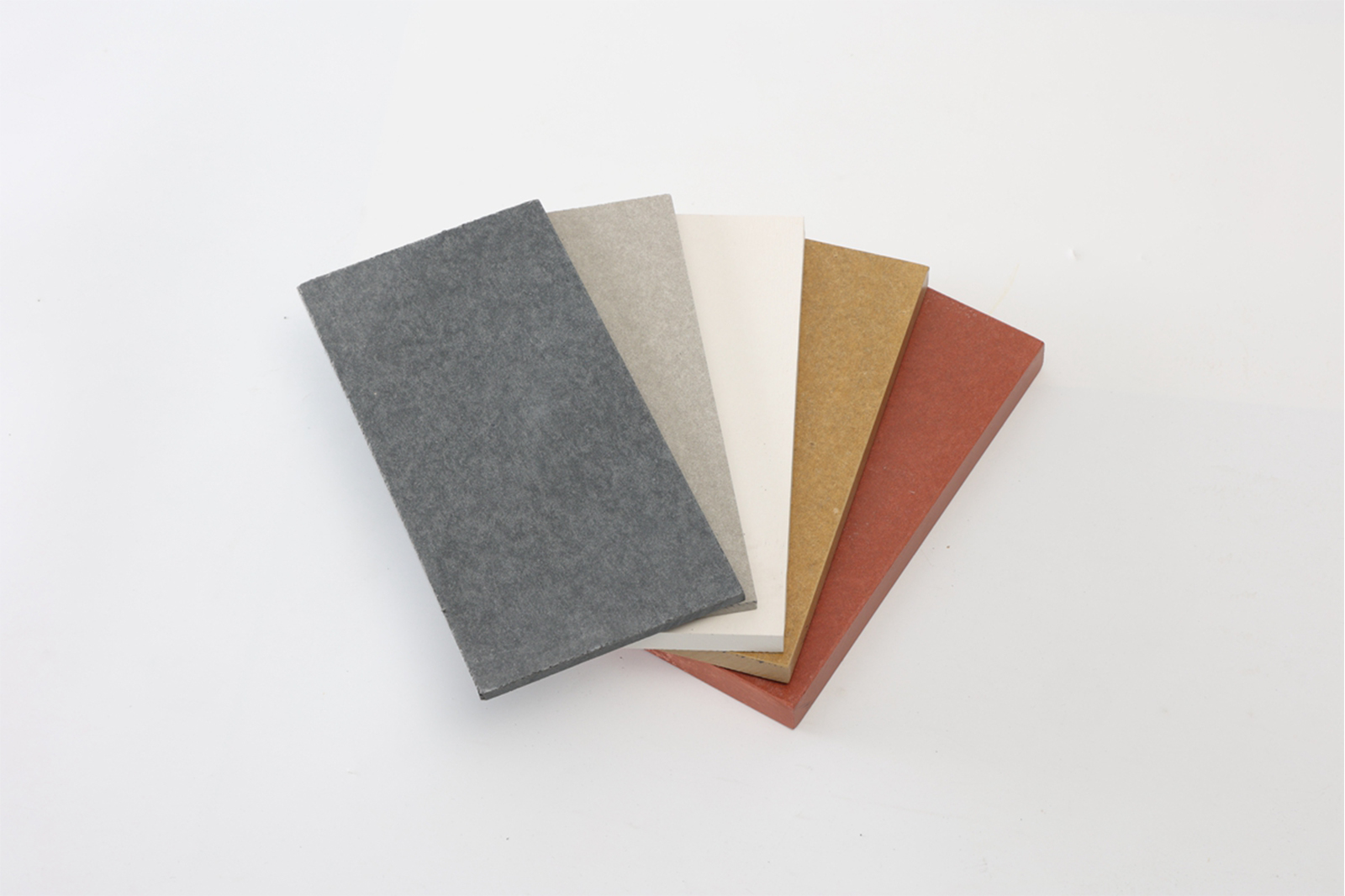

Product Details
Product Details
Characteristic
• stable Dimension — No warping, easy installation
• Fire Resistance — Non-combustible, life safety
• Moisture Resistance — Mold-proof, water-resistant
• Weather Resistance — UV & freeze-thaw stable
• Durable & Mothproof — Pest-resistant, low maintenance
• Thermal Insulated — Energy savings, comfort
• Sound Insulation — Noise reduction, privacy
Physical Properties
| Item | Index |
|---|---|
| Bending Strength (Water Saturated) | ≥13 MPa |
| Bending Strength (Oven Dry) | ≥18 MPa |
| Impact Strength | ≥1.4 KJ/m² |
| Water Absorption | ≤28% |
| Moisture Movement | ≤0.25% |
| Thermal Conductivity | ≤0.35 W/(m·k) |
| Water Impermeability | Pass |
| Non-combustibility | EN 13501 : AS 1530 |
| Freeze-thaw Cycles | Pass |
| Heat Rain Resistance | Pass |
| Warm Water | Pass |
| Soak-dry | Pass |
| Radioactivity | Ira <1.0 ; Ir <1.0 |
| Asbestos Content | 100% Asbestos free |

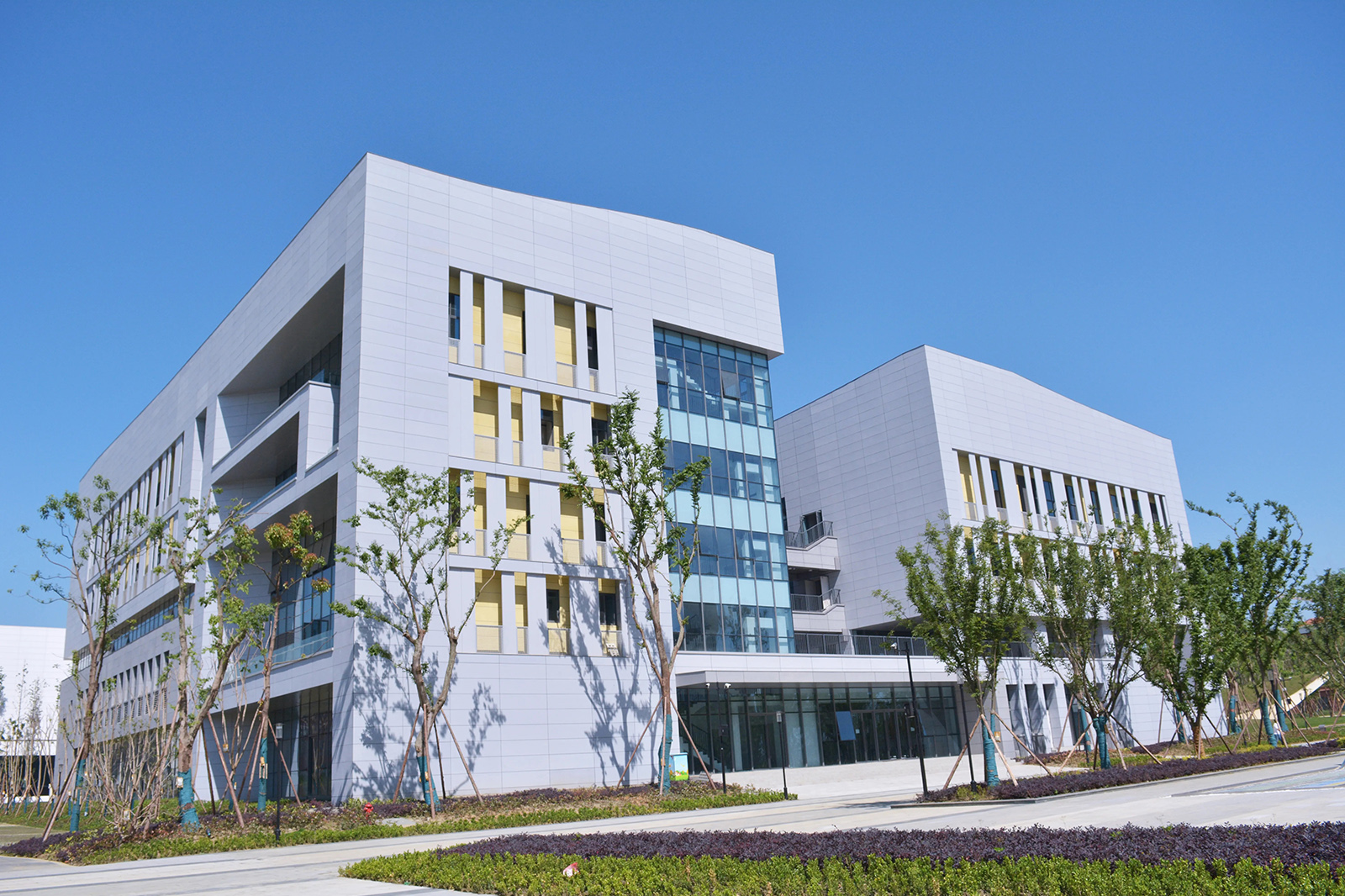

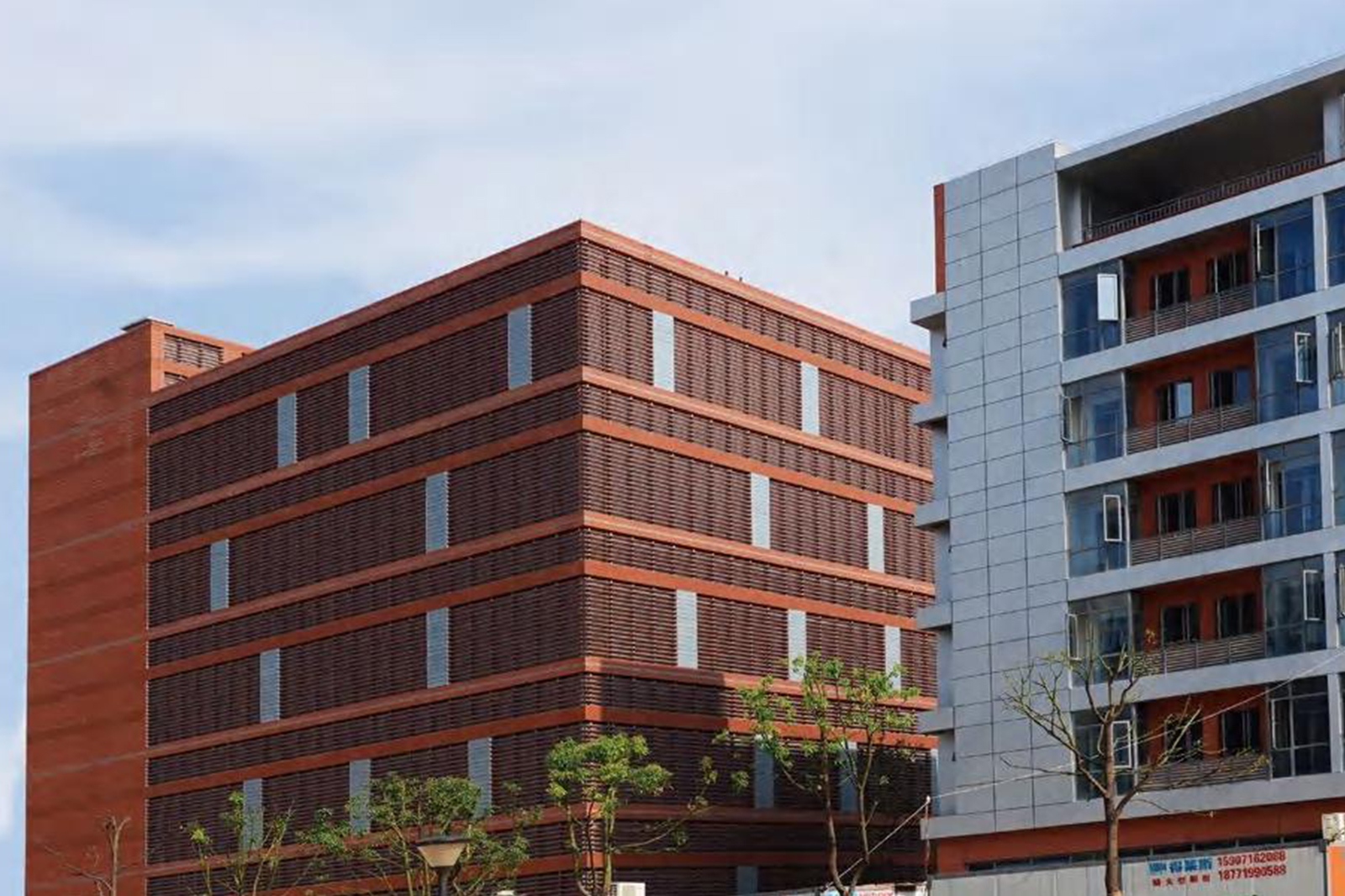

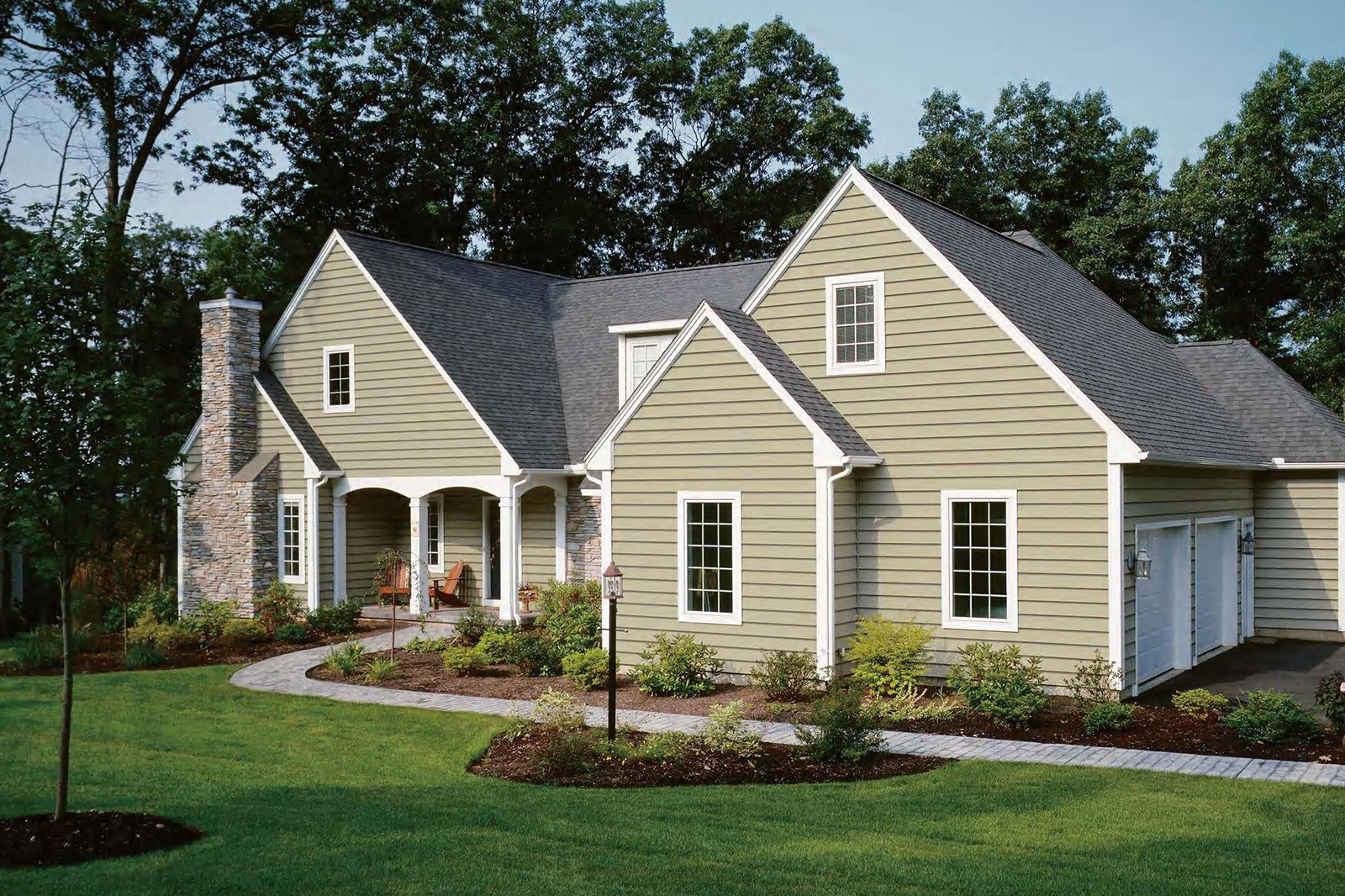

Product Cases
Product Cases
Application
• Cladding & Siding Systems — For exterior wall protection and finishing
• Building Facades — Residential, commercial, and public structures
• Retrofit & Protective Panels — Renovation projects and weather-resistant cladding
• High-Humidity Environments — Semi-exposed outdoor areas with moisture exposure
• Decorative Curtain Walls — Architectural accent and facade enhancement
• Interior Applications — Wall and ceiling decoration

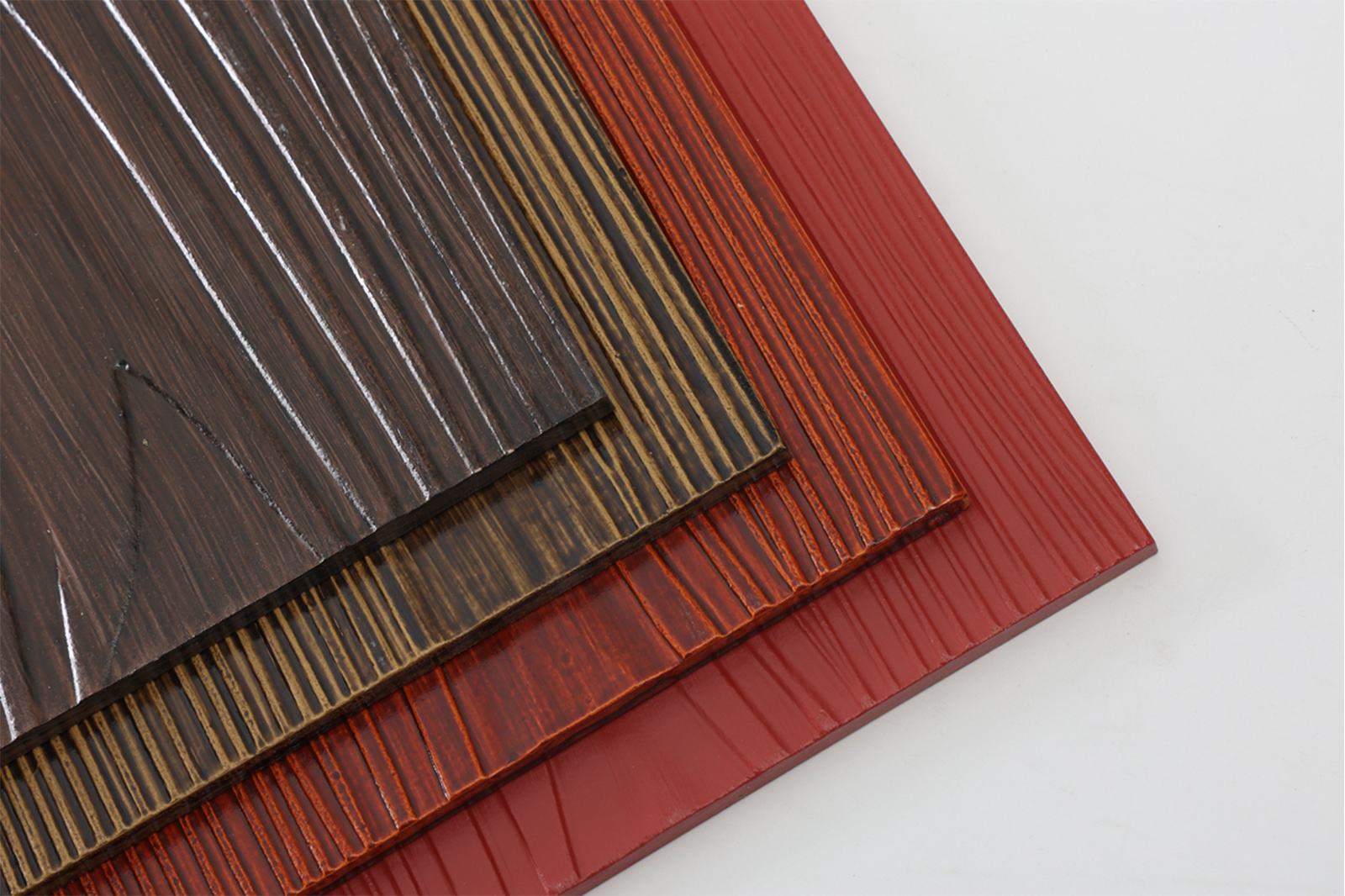

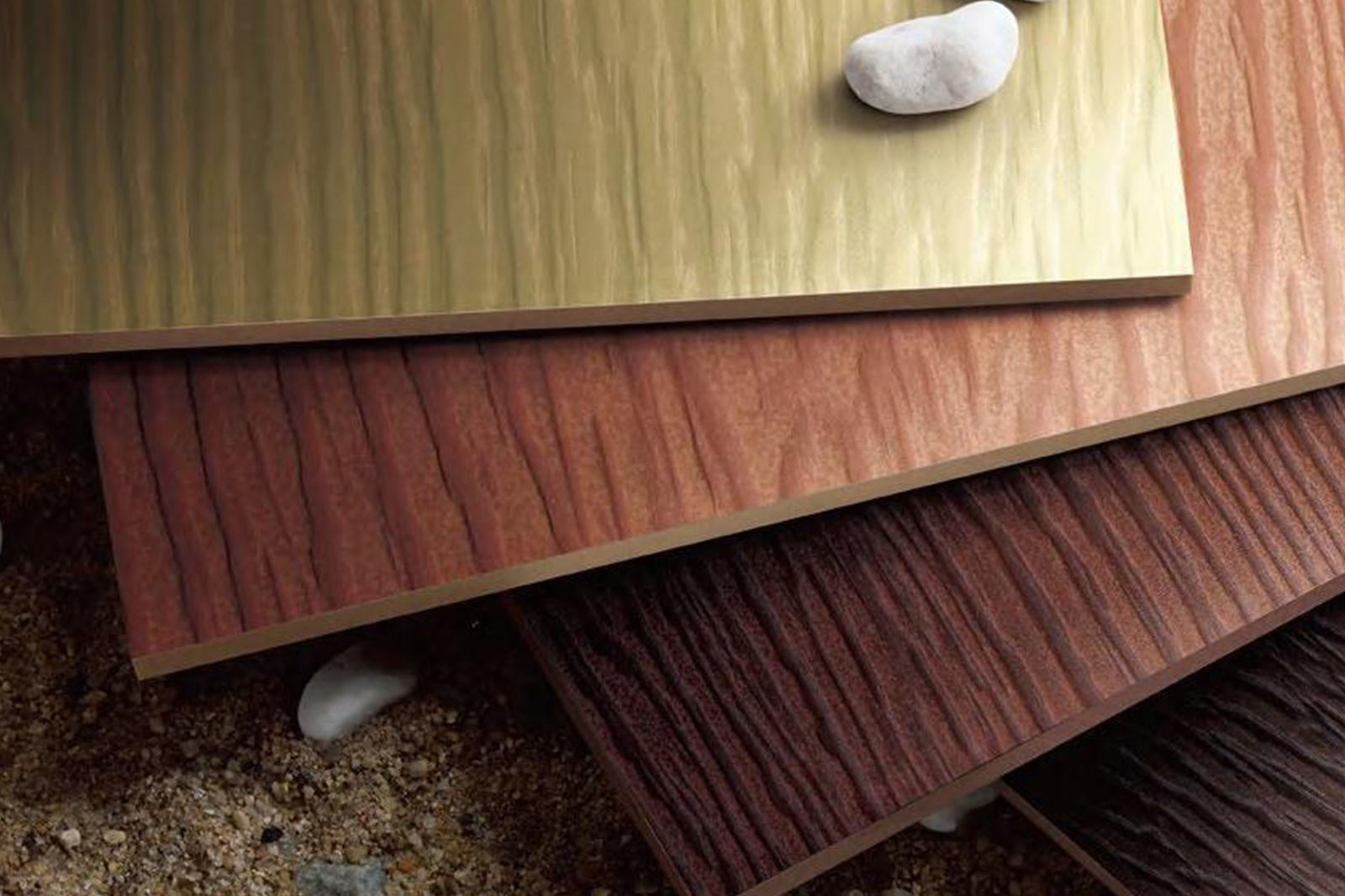

It is a premium artificial fiber cement panel, designed for exterior cladding. Its wood grain finish delivers a timeless, elegant aesthetic while maintaining a fresh appearance year after year.
Specification (mm): 3050*192/241
Thickness (mm): 7.5/9
Density (g/cm3): ≥1.25
Colors and patterns are customizable based on samples.

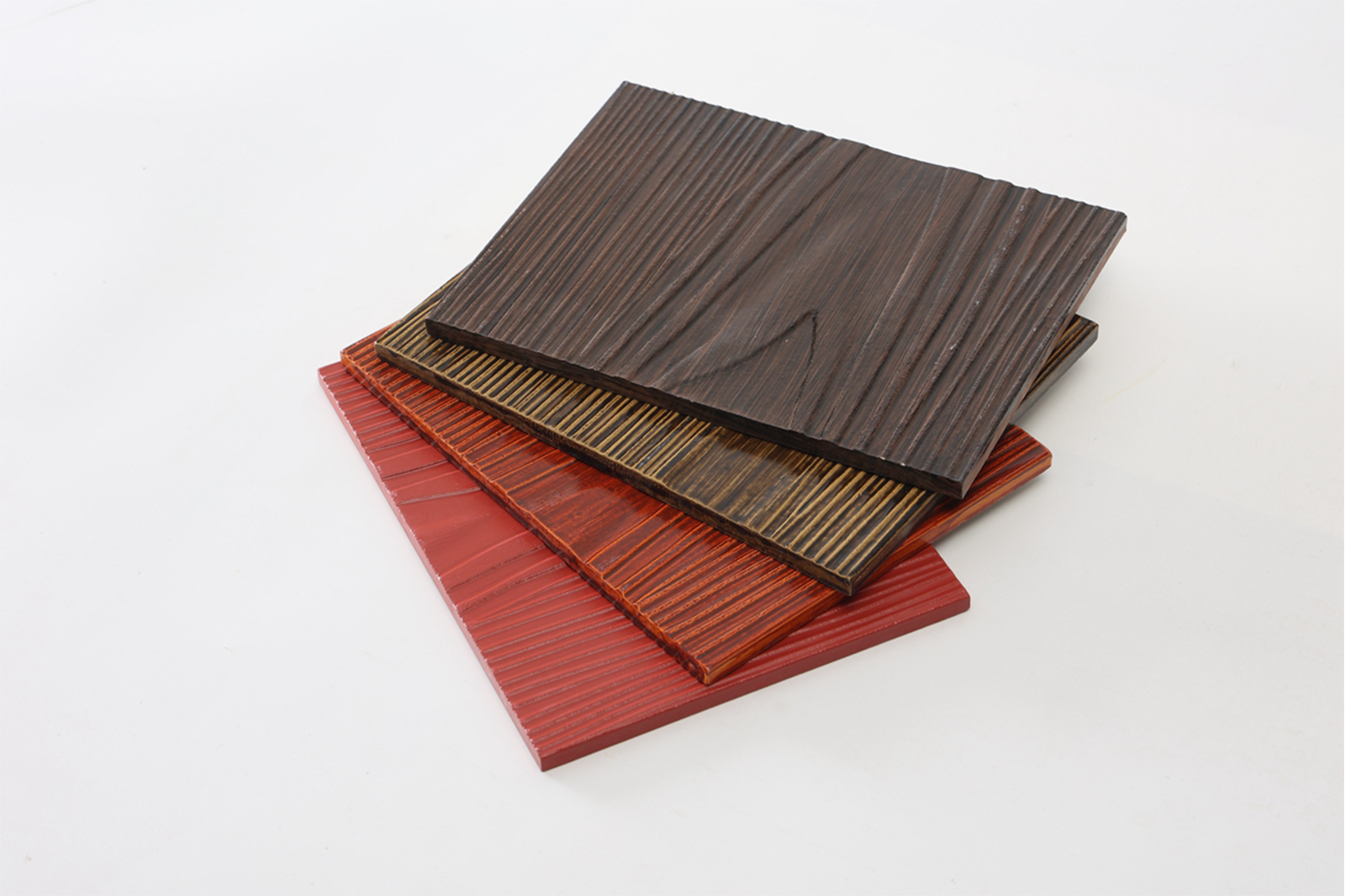

Product Display
Product Display

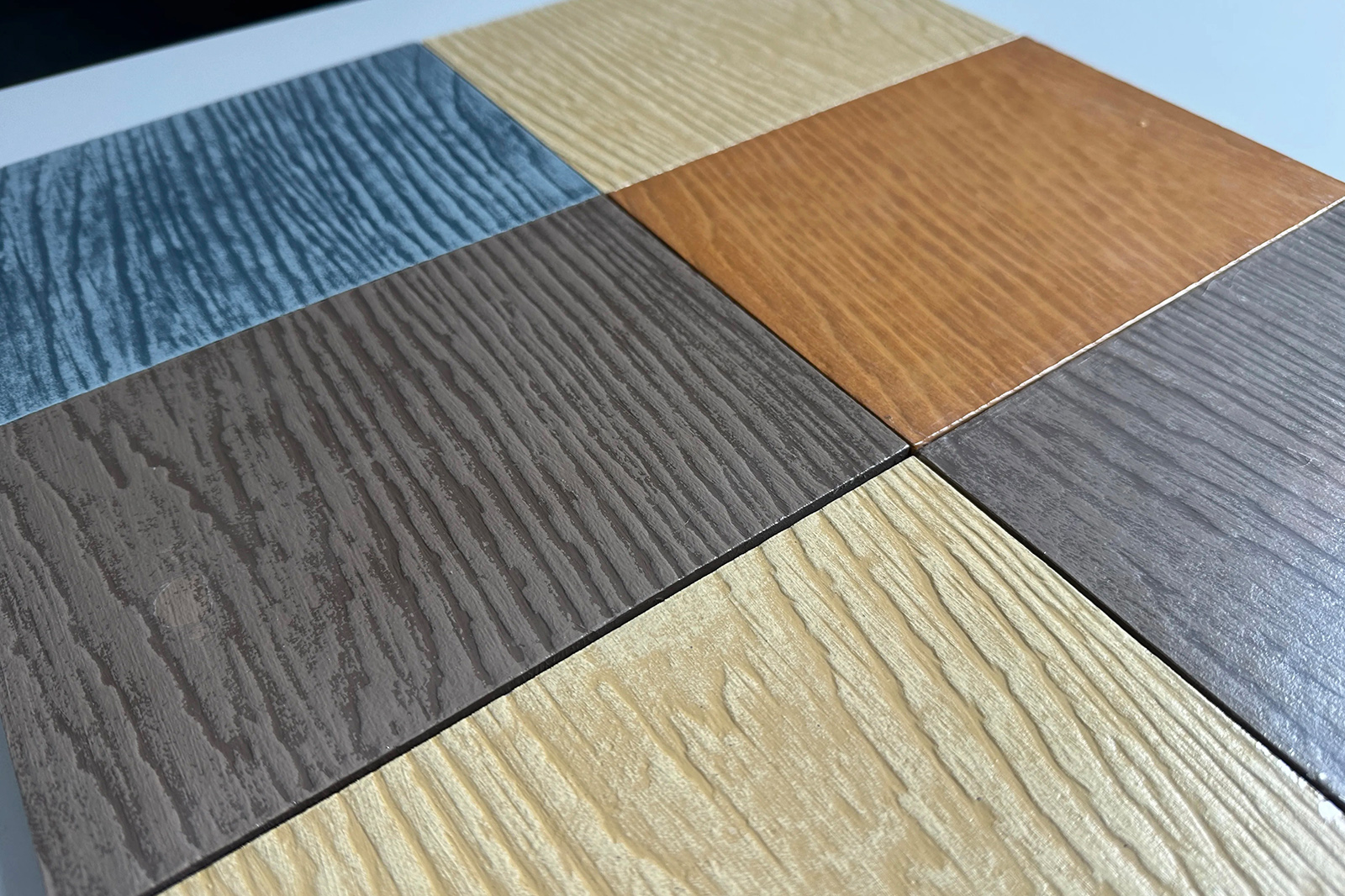

Product Details
Product Details
Characteristic
• Low Expansion & Shrinkage — Prevents structural distortion from temperature changes
• Multi-Application Design — Ideal for cladding, fire protection, and external walls
• Proven Innovation — 30+ patents, sustainable and high-performance technology
• Non-Combustible Material — Withstands high temperatures without ignition
• Moisture-Resistant Core — Blocks warping, swelling, and material degradation
• Extreme Weather Tolerance — Performs reliably in heat, cold, and humidity
• Superior Thermal Insulation — Effectively reduces heat transfer for comfort
• Energy Cost Reduction — Lowers heating and cooling expenses
• Termite-Resistant Design — Inedible materials prevent pest damage
• Long-Term Durability — Contributes to building longevity and structural integrity
Physical Properties
| Item | Index |
|---|---|
| Bending Strength (Water Saturated) | ≥12 MPa |
| Bending Strength (Oven Dry) | ≥16 MPa |
| Water Absorption (Fiber Cement Color) | ≤38 % |
| Moisture Movement | ≤0.25% |
| Thermal Conductivity | ≤0.30 W/(m·k) |
| Water Impermeability | Pass |
| Non-combustibility | ASTM C1186 |
| Freeze-thaw Cycles | Pass |
| Heat Rain Resistance | Pass |
| Warm Water | Pass |
| Soak -dry | Pass |
| Water Tightness | Pass |
| Radioactivity | Ira <1.0 ; Ir <1.0 |
| Asbestos Content | 100% Asbestos free |

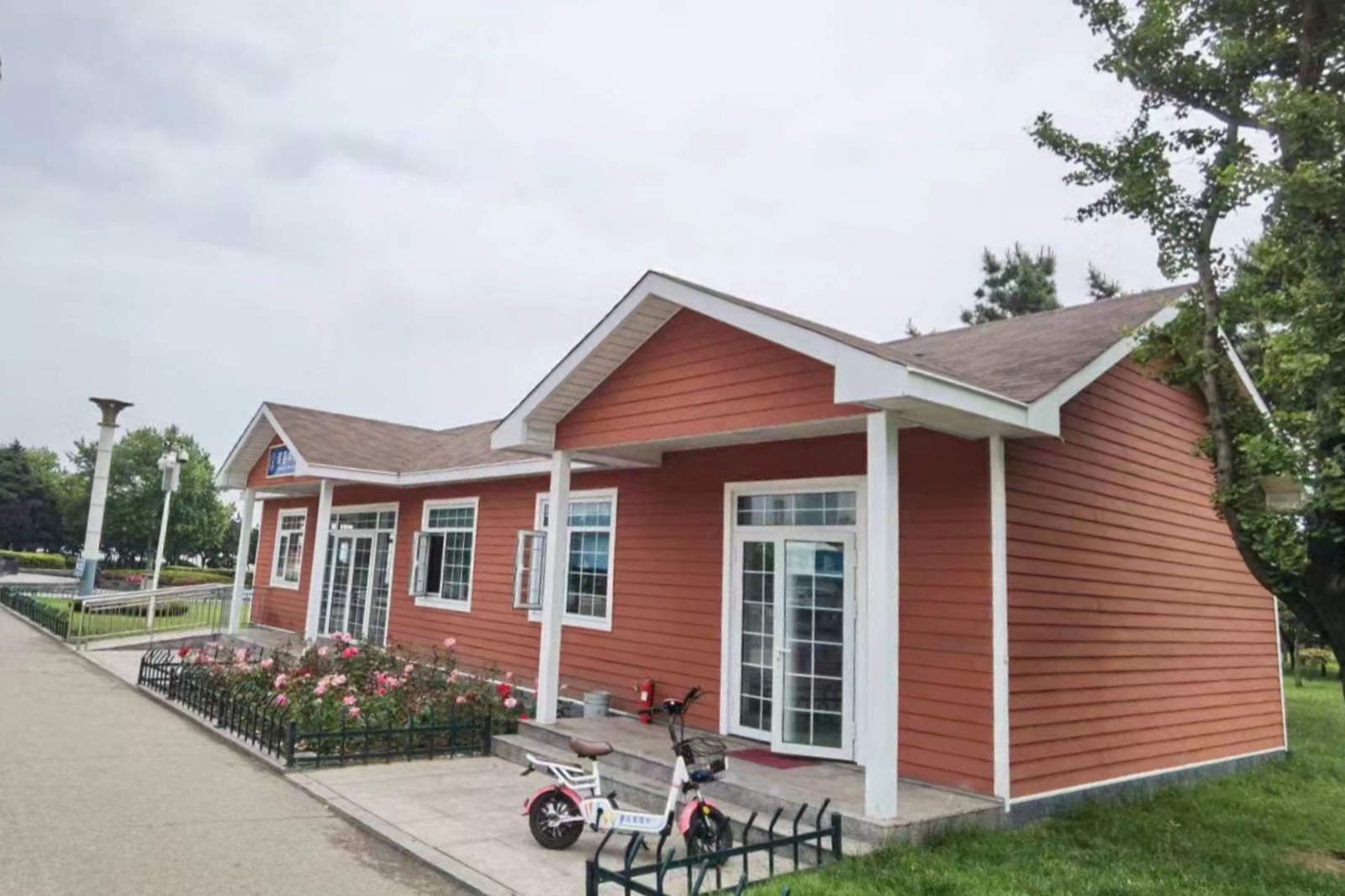

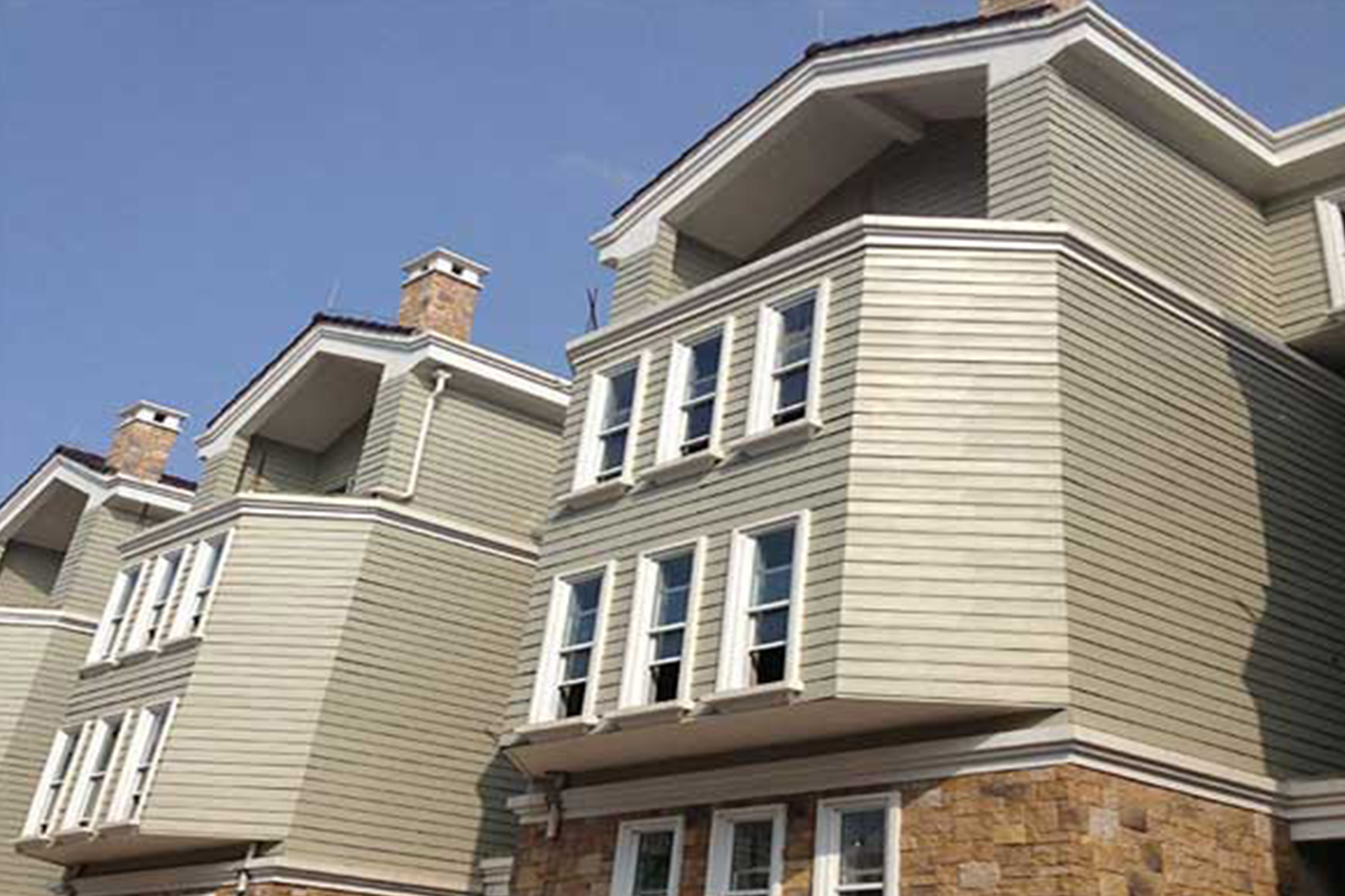

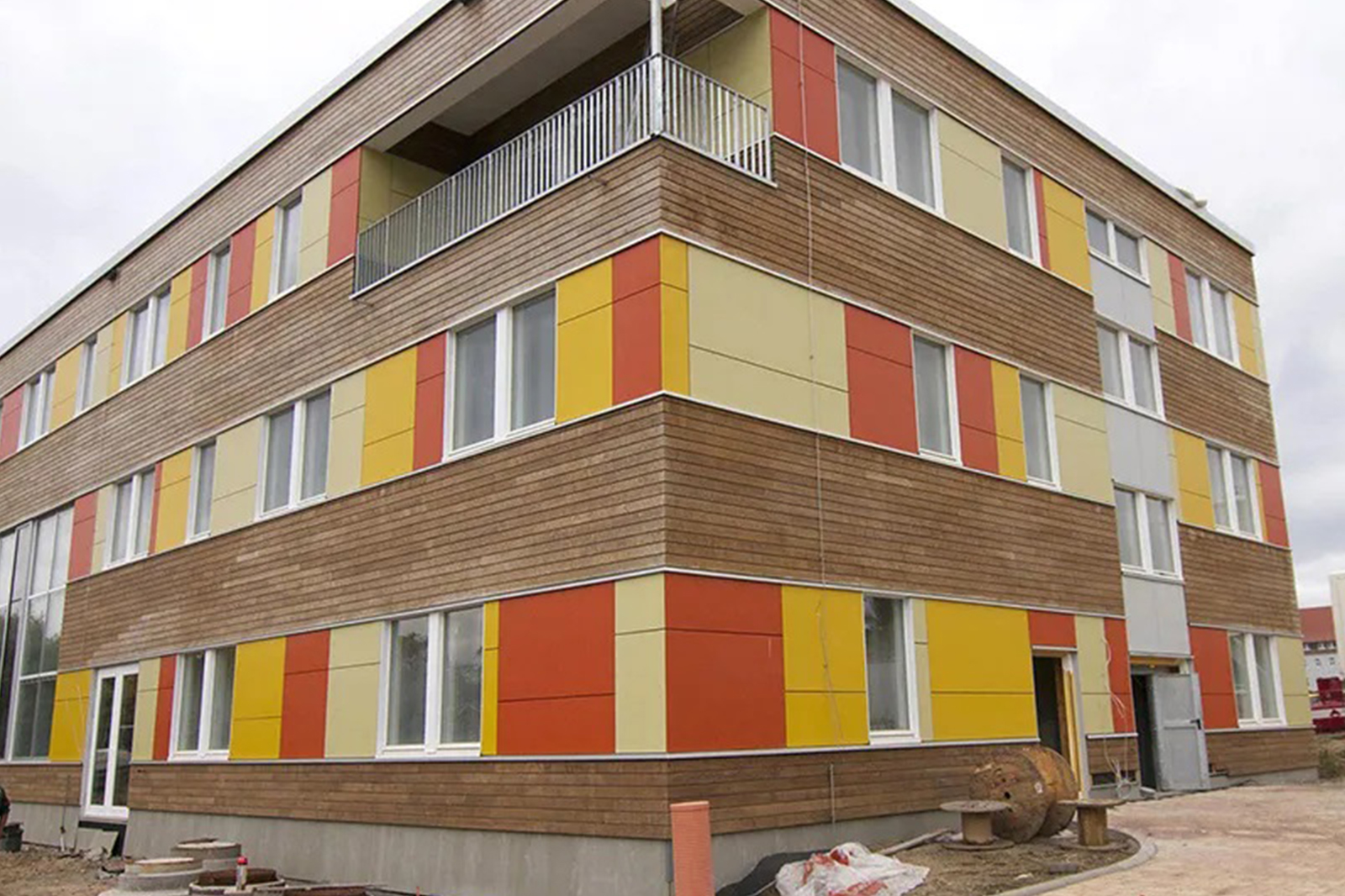

Product Cases
Product Cases
Application
• Residential and commercial exterior wall cladding
• Renovation or new construction facades
• Semi-exposed areas such as balconies, corridors, and patios
• Decorative exterior panels with wood aesthetics
