Blast Resistant Panel

Blast Resistant Panel

Blast Resistant Panel

The Blast Resistant Panel is a high-performance safety material engineered with an asbestos-free cement flat plate core and pressurized galvanized steel surface, delivering exceptional fire resistance and explosion containment capabilities.

Specification (mm): 2440/3050*1220

Thickness (mm): 9.5

Area Density (kg/m²):>21

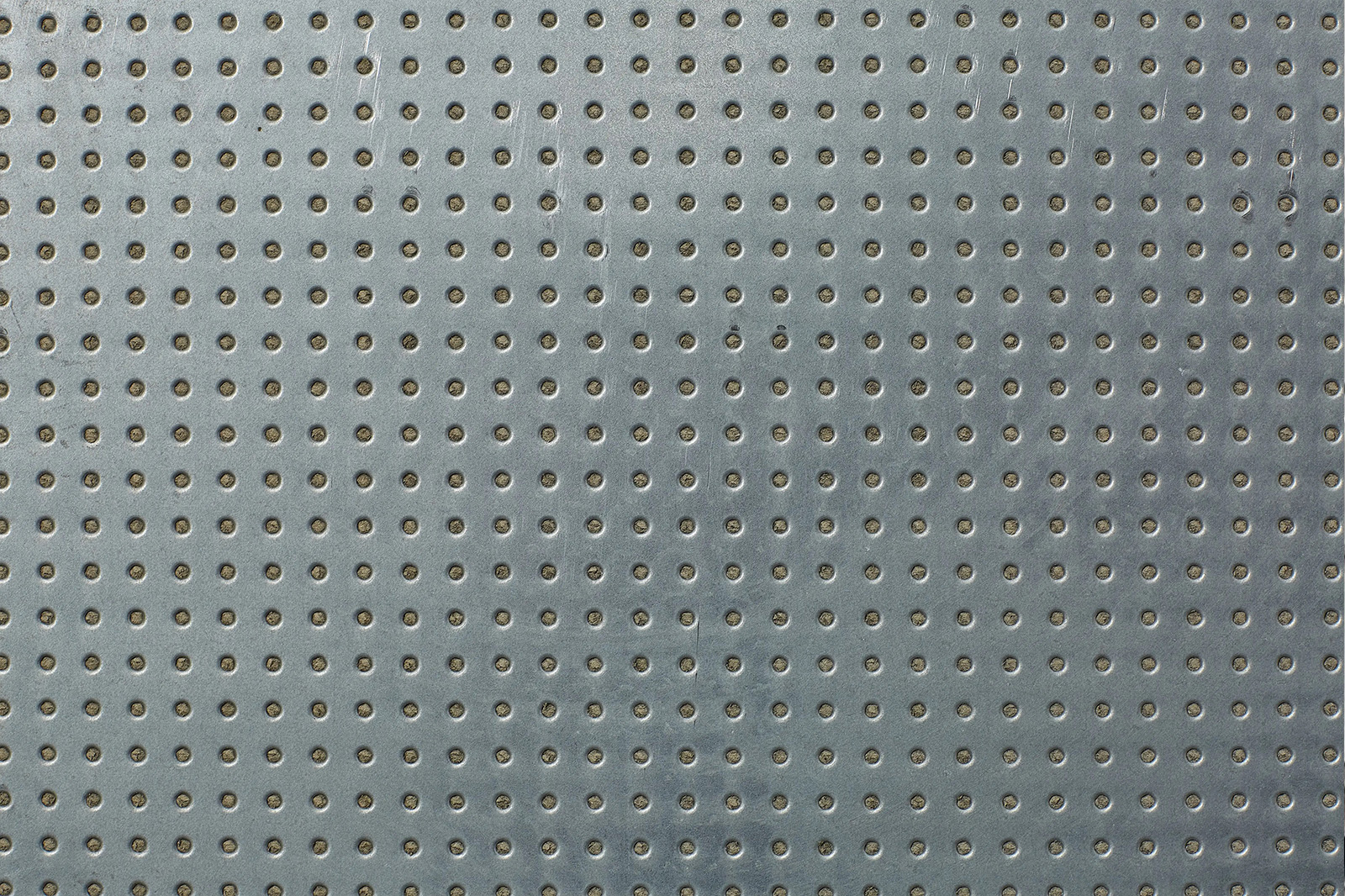

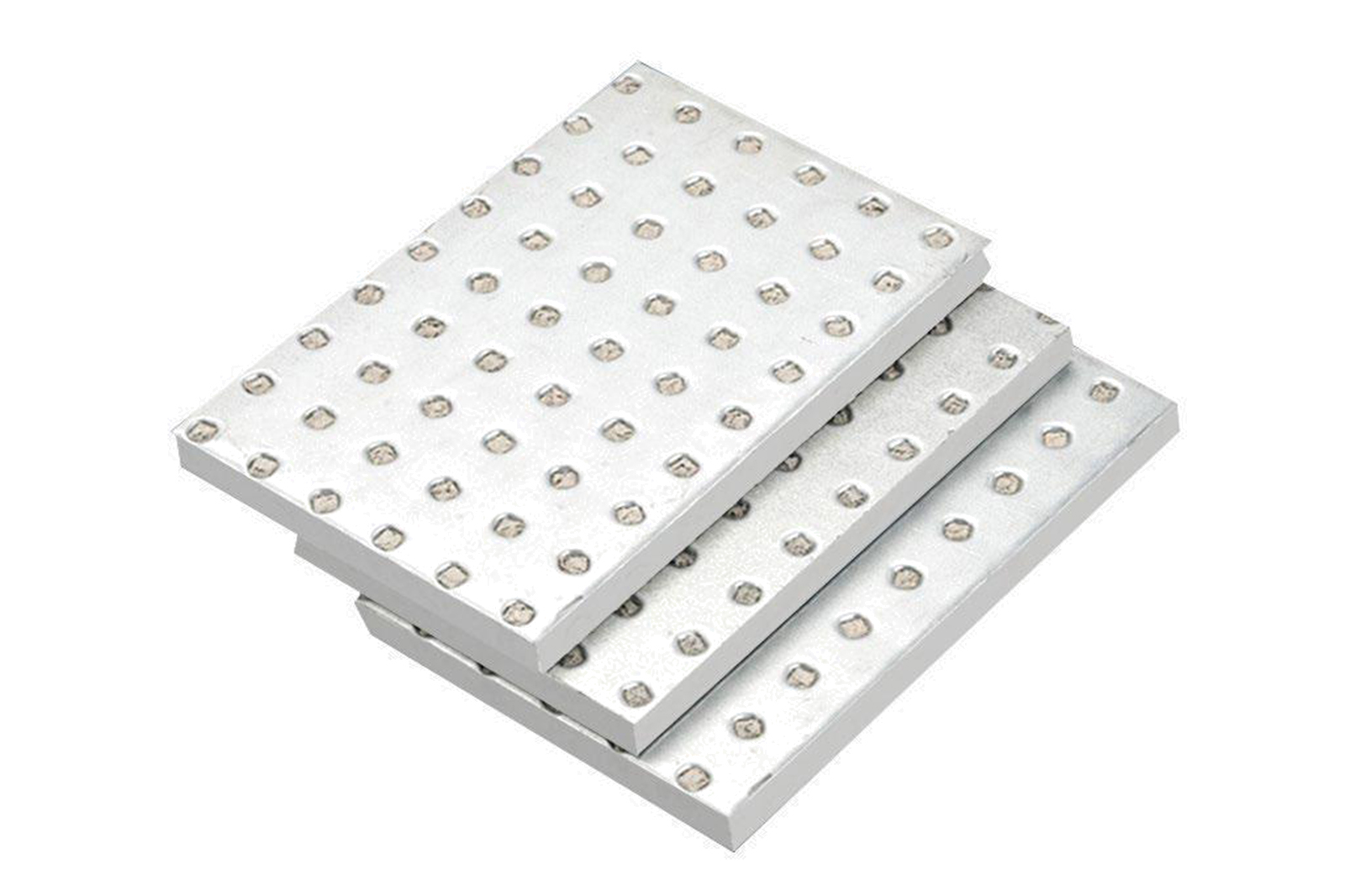

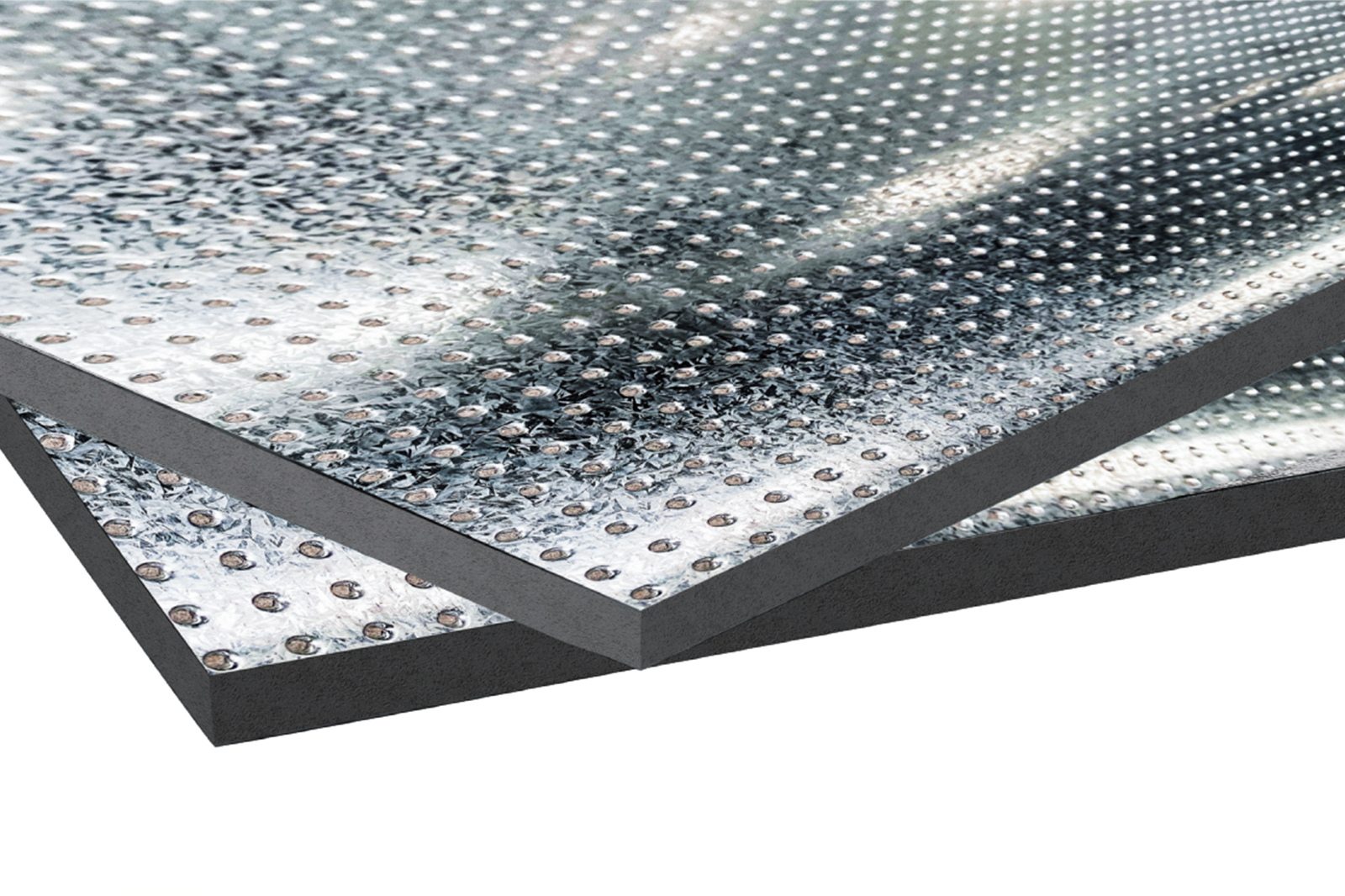

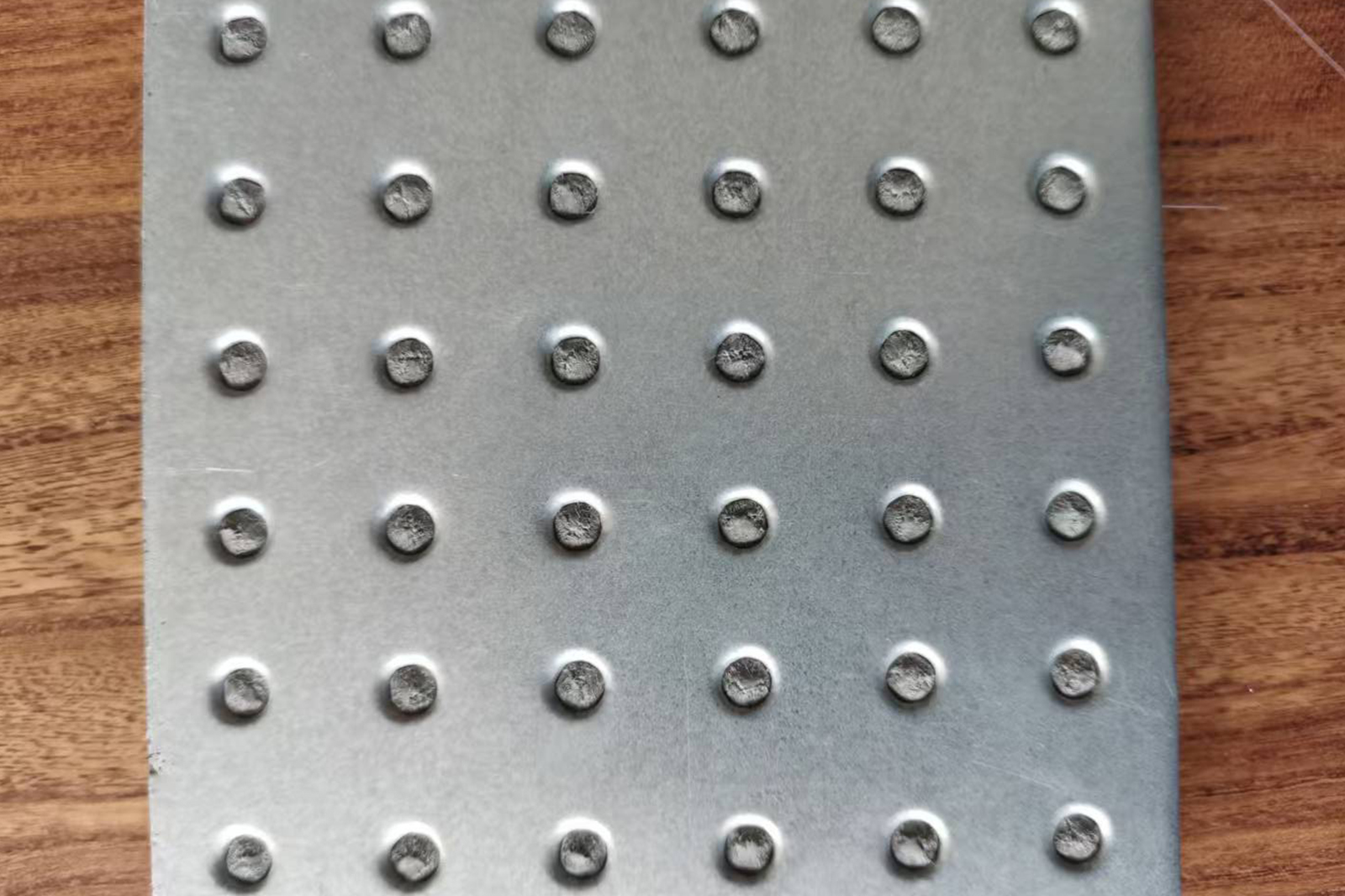

Product Display

Product Details

Characteristic

• High Moisture Resistance — Low water absorption prevents swelling, mold, and structural degradation in humid environments.
• Strong Impact & Load Resistance — Withstands collision, bending, and wind loads reliably under extreme conditions.
• Fire & Explosion Protection — 4H fire-rated with blast-resistant design that confines explosion pressure to minimize casualties and damage.
• Easy Installation & Disassembly — Modular design enables quick setup and reconfiguration, reducing labor costs and timelines.
• Recyclable & Sustainable — Fully recyclable material reduces waste and aligns with green building standards.

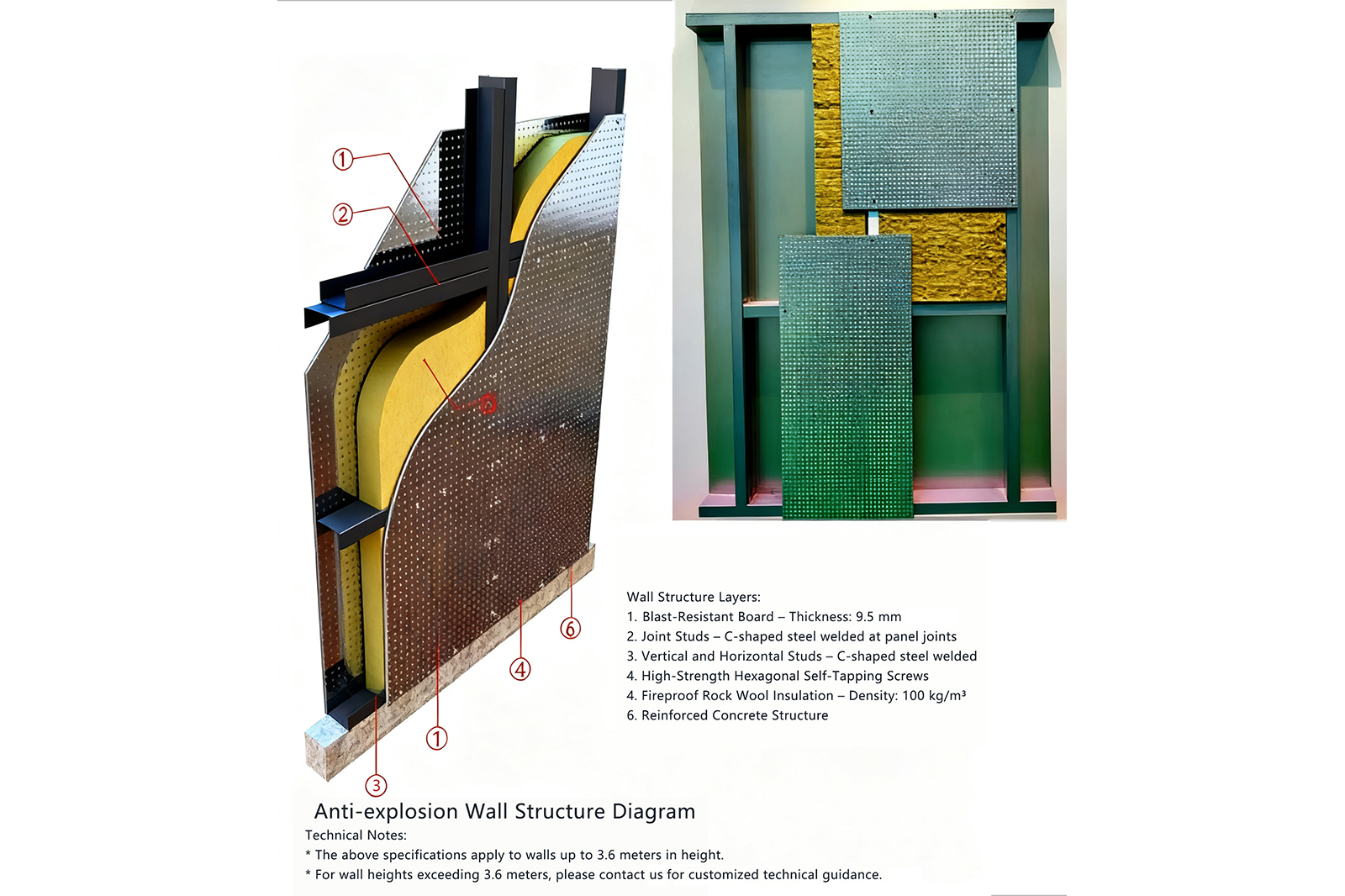

• Integrated Steel Frame + Rock Wool System — Unified structural solution combining strength and fire insulation for enhanced safety.

Physical Properties

板材参数规格表

Item	Index
Moisture Content	≤10 %
Static Bending Strength	≥80 Mpa
Elastic Modulus Strength	≥24000 Mpa
Thermal Expansion	≤1.5×10⁻⁵ °C⁻¹
Thermal Conductivity	≤0.20 W/(m·k)
Environmental Protection	Asbestos Content	100% Asbestos free
	Radioactivity Ira	≤0.5
	Radioactivity Ir	≤0.5
Non-combustibility		Class A1
Blast Resistant Board component	0.5mm galvanized steel board + 8.5mm fiber cement board + 0.5mm galvanized steel board.
Please contact us if you need more technical index.

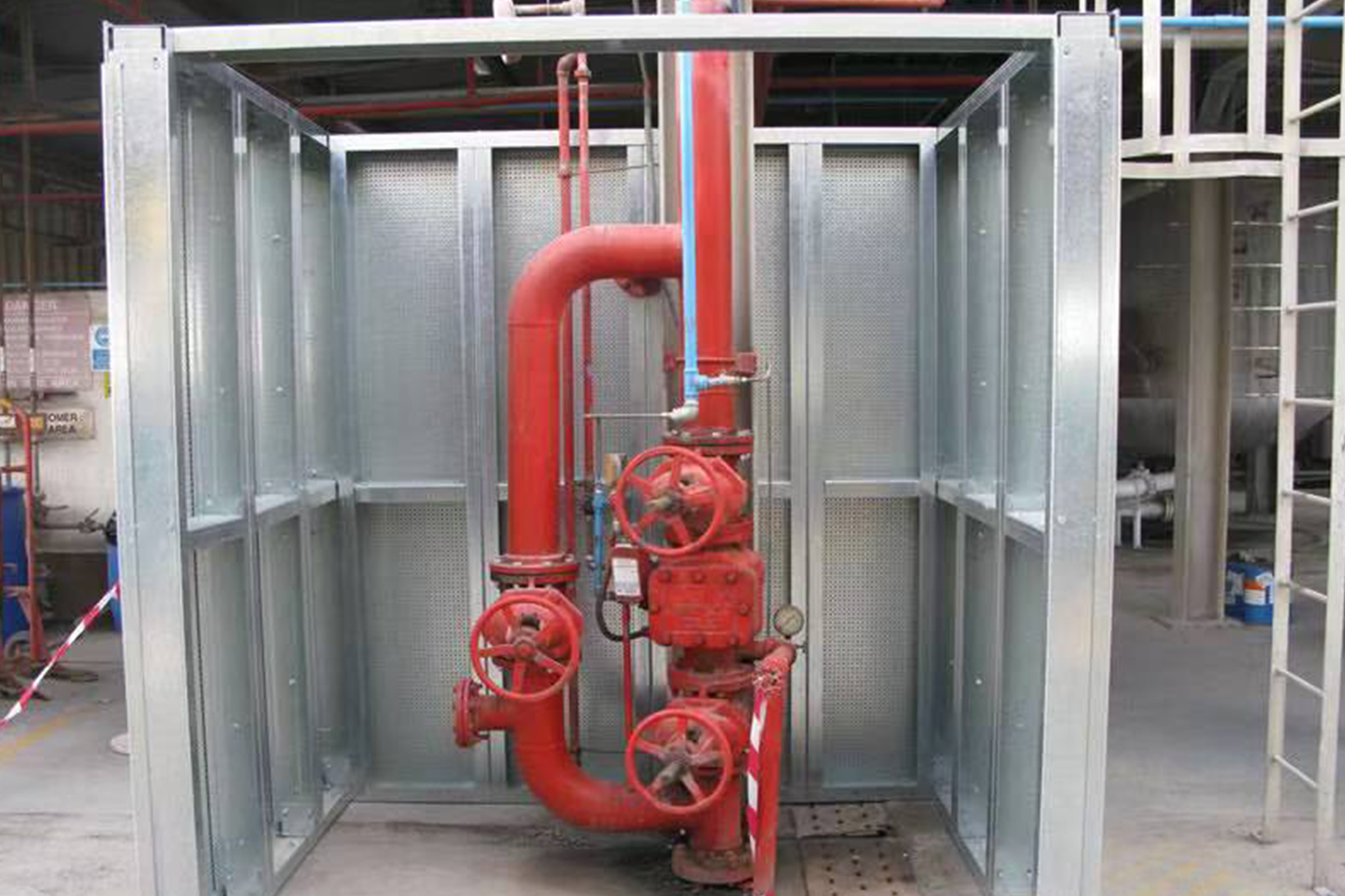

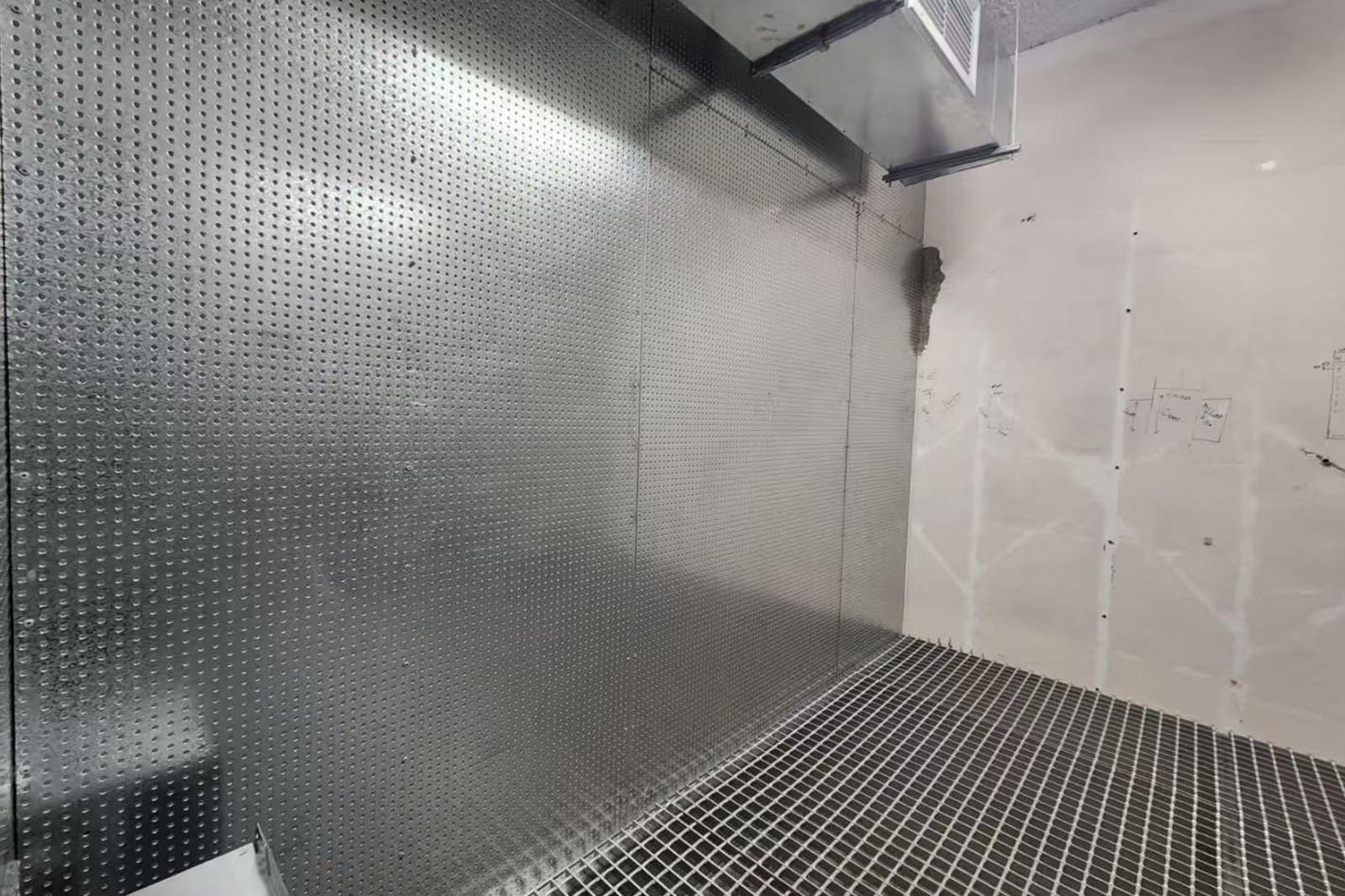

Product Cases

Application

Designed for critical infrastructure protection, it serves as the core component in explosion-proof partition walls, ceilings, smoke exhaust ducts, cable protection systems, doors, and steel structure reinforcement across industrial, commercial, and high-risk environments.

By effectively minimizing fire and explosion hazards, this board plays a vital role in safeguarding human life and protecting property, making it an essential solution for modern safety-critical construction projects.

• Explosion-Proof: Power plants, chemical factories, hazardous warehouses
• Impact-Resistant: Data centers, military facilities, high-load zones
• Fire & Blast Containment: Substations, laboratories, security-sensitive areas
• Structural Reinforcement: Transformer rooms, telecom stations, industrial floors
